IBM TS3310 User Manual

2
Control module/left
middle column
8 Expansion module/left middle column
3
Control module/left rear
column
9 Expansion module/left rear column
4
Control module/right rear
column
10 Expansion module/right rear column
5
Control module/right
middle column
11 Expansion module/right middle column
6
Control module/I/O
Station
12 Expansion module/I/O Station
1. Install the new fiducial on the storage column.
a. Verify the correct position for the fiducial on the storage column by
referring to the small black squares on the larger rectangles in Figure 8-110
on page 8-97.
b. Insert the new fiducial by sliding it into the slot until it locks into place (1
in Figure 8-111).
2. Insert the storage column straight into the side wall of the chassis.
Important: Replace the columns in their original location. Always begin by
replacing the rear column first. Then replace the middle and front
columns.
1
a66mi076

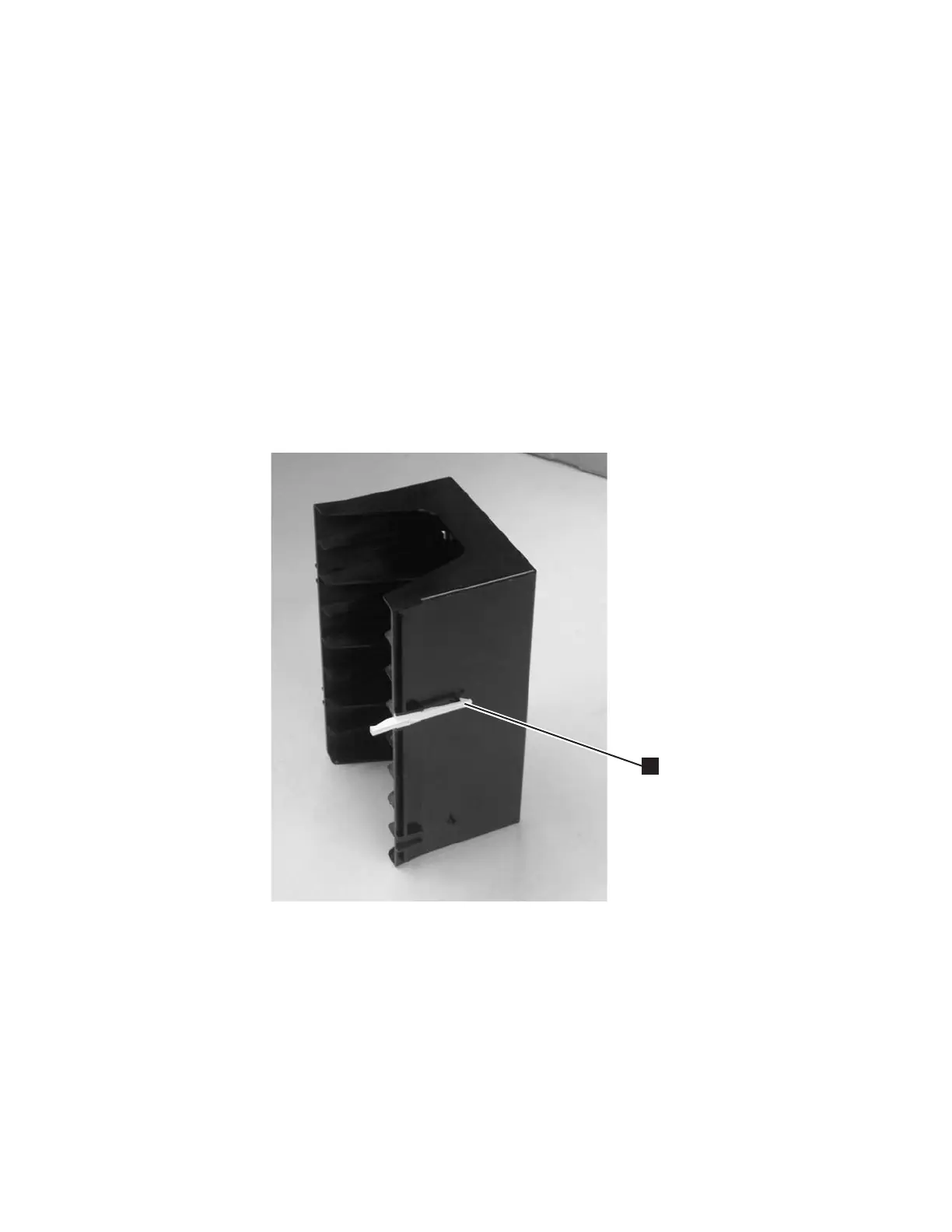

Figure 8-111. Fiducial on storage column
8-98 TS3310 Tape Library Maintenance Information

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
