IBM TS3310 User Manual

Front Panel Components
The library has the following front panel components:
v Bezels
v Operator Panel
v I/O Station
v I/O Station Lock Assembly
v I/O Station Safety Flap
v Power Switch/LED board
Bezels
The front bezels are the design panels on the front of both the control module and
the expansion module.
These instructions explain how to replace the front bezels of your library. Bezels
can be replaced on both the I/O Station door and the Access Door.
Required Tool: T10 TORX screwdriver
Removing the I/O Station Bezel
1. Perform “Preparing a Library or Library Module for Repairs” on page 8-4.
2. Open the I/O Station door.
a66mi053
1

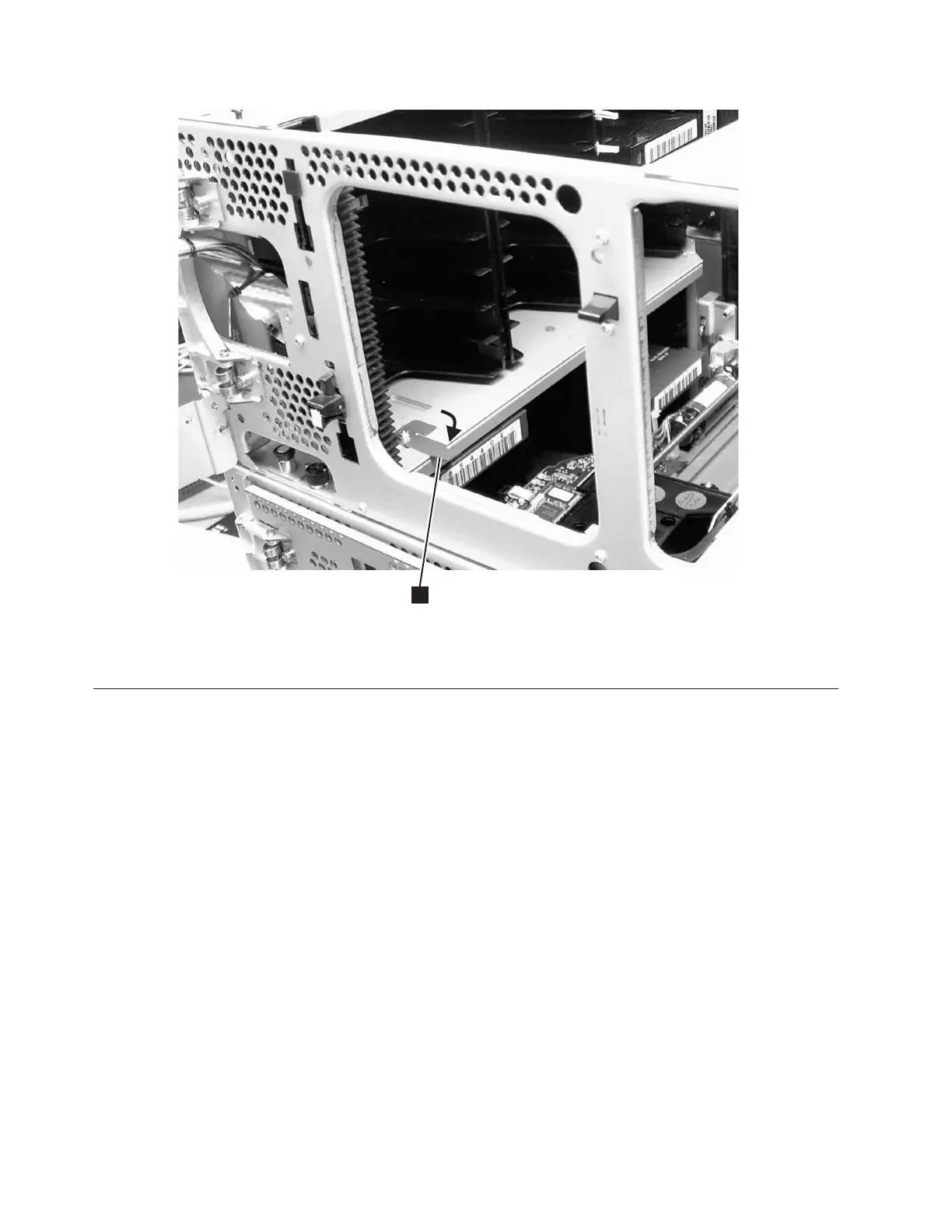

Figure 8-23. Picker assembly locking mechanism
8-26 TS3310 Tape Library Maintenance Information

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
