7. Return the module to its correct, upright position.
Replacing a Rear Gear Rack
1. Lay the module on the left side (from front).
2. Using your thumb, push the metal slide (4 in Figure 8-121) toward the gear
rack locking mechanism (3 in Figure 8-121) and hold it in place while
inserting the black tab (1 in Figure 8-121) and locking mechanism into the
keyhole slots in the library chassis.
1
2
3
4
a66mi059

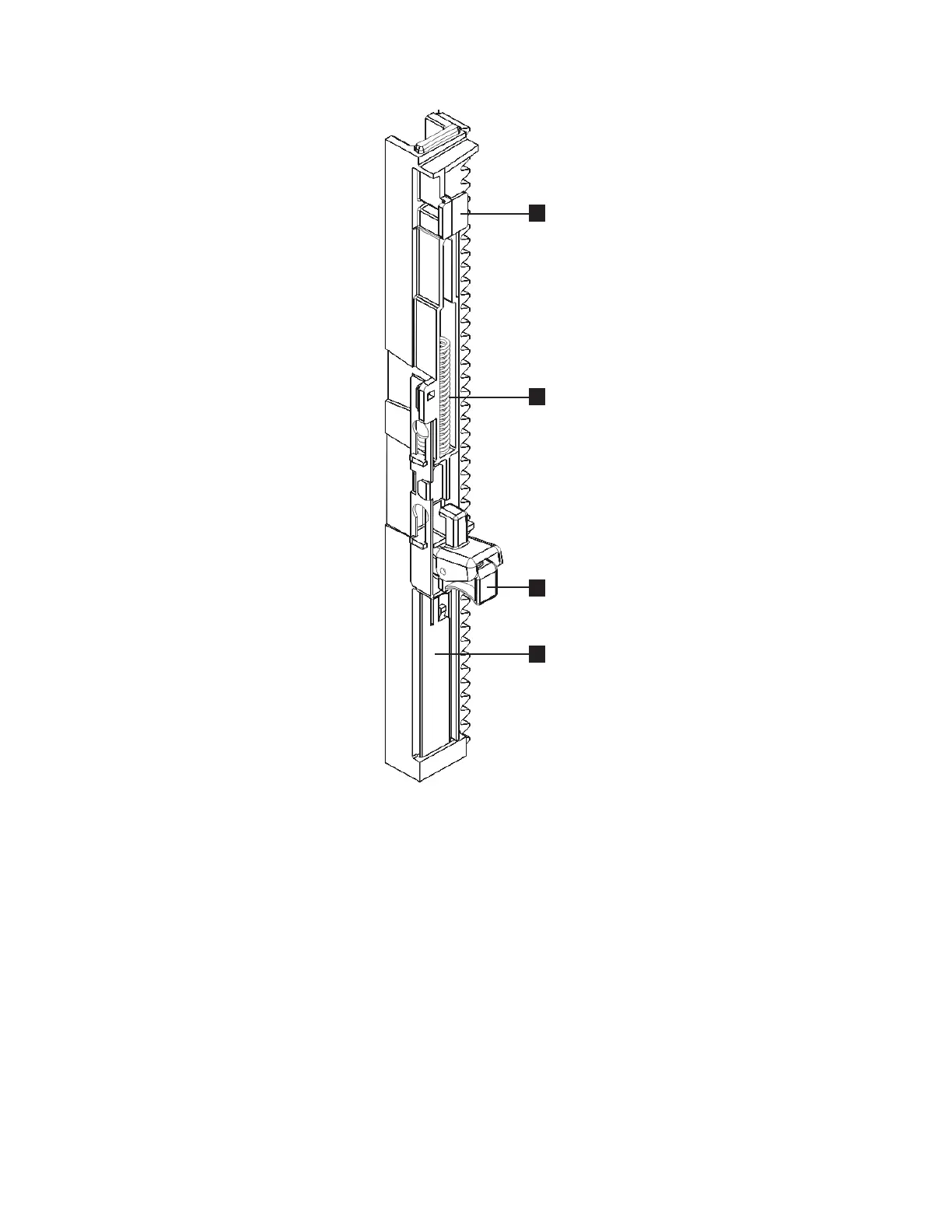

Figure 8-121. Gear rack (detail)
