1 Y-rail in unlocked, functional position
v From the back of the library, find the rear Y-rail release mechanism, which
is located in the interior of the right side of the module. Squeeze the handle
of the Y-rail release mechanism, lift it out of its locked position, and slide it
downward as far as it will go. Doing this aligns the Y-rails with the Y-rails
of the module beneath it.
CAUTION:
Check to make sure that there is no gap between the top and bottom
Y-rails on both the front and back of the library. If a gap exists, the
library cannot mechanically initialize
14. Gently push the Picker assembly up high enough to release the Picker locking
mechanism (see 1 in Figure 8-1 on page 8-6).
15. Release the Picker assembly and allow it to slowly drop to the bottom of the
library.
16. Reinstall all control module components removed for weight reduction.
a. Drive sleds (see “Drive Sled” on page 8-43)
b. Power supplies (see “Power Supply (Primary and Redundant)” on page
8-52)
17. Reconnect the customer-supplied Ethernet cable to the Library Control Blade
(for cable location, see 2 in Figure 8-49 on page 8-47).
18. Reconnect the module-to-module communication cable from the control
module to the expansion module (4 in Figure 8-49 on page 8-47).
19. Perform “Returning a Library or Library Module to Normal Operations after
Repairs” on page 8-4.
a77qs037
1

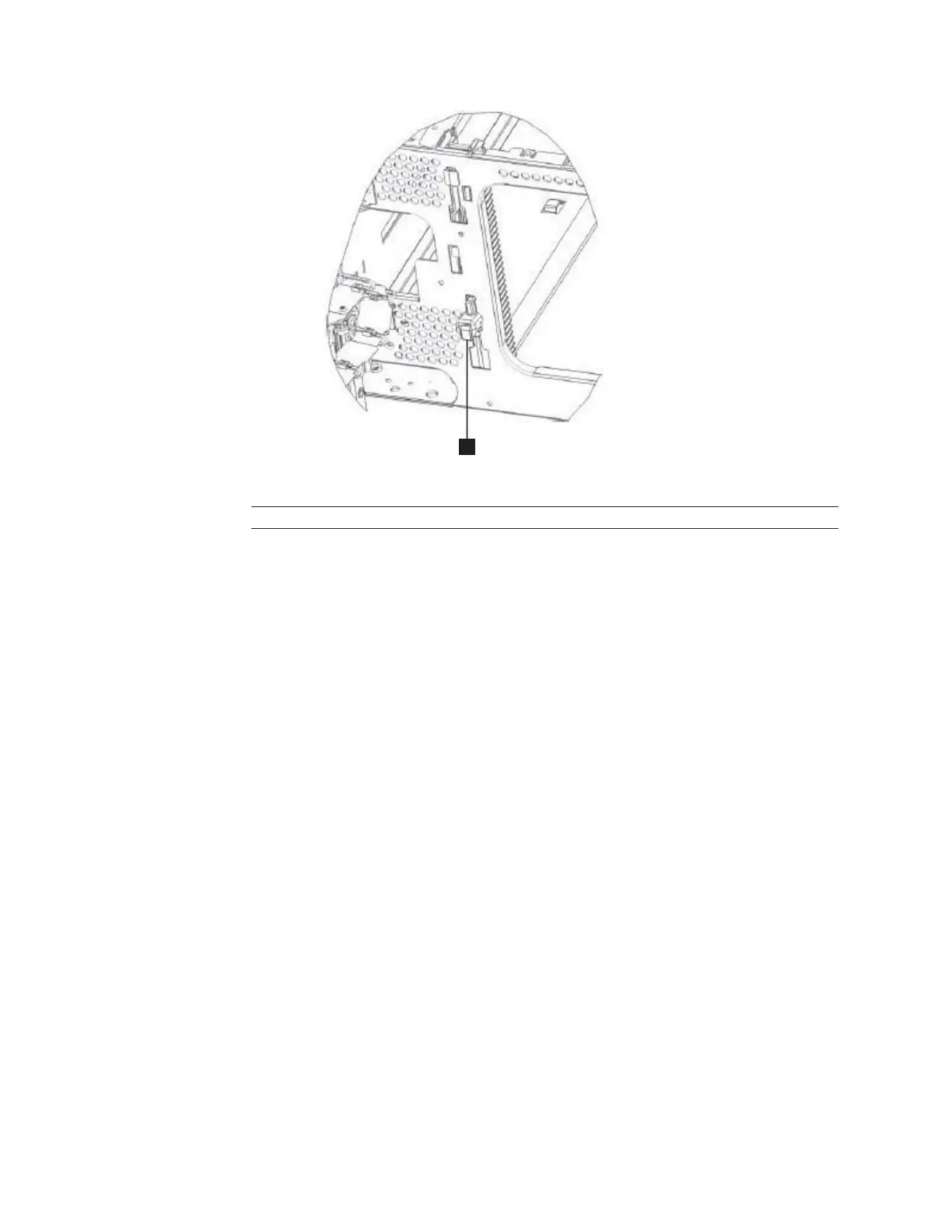

Figure 8-16. Releasing the Y-rail
8-18 TS3310 Tape Library Maintenance Information
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
