CAUTION:
This lever/clamp is very fragile. Lift it with a fingernail or similar small
object
c. Repeat the above steps for the second cable/connector.
d. Slide the flex cables to the rear as in Figure 8-95.
e. Close the cable protector as in Figure 8-96 on page 8-88.

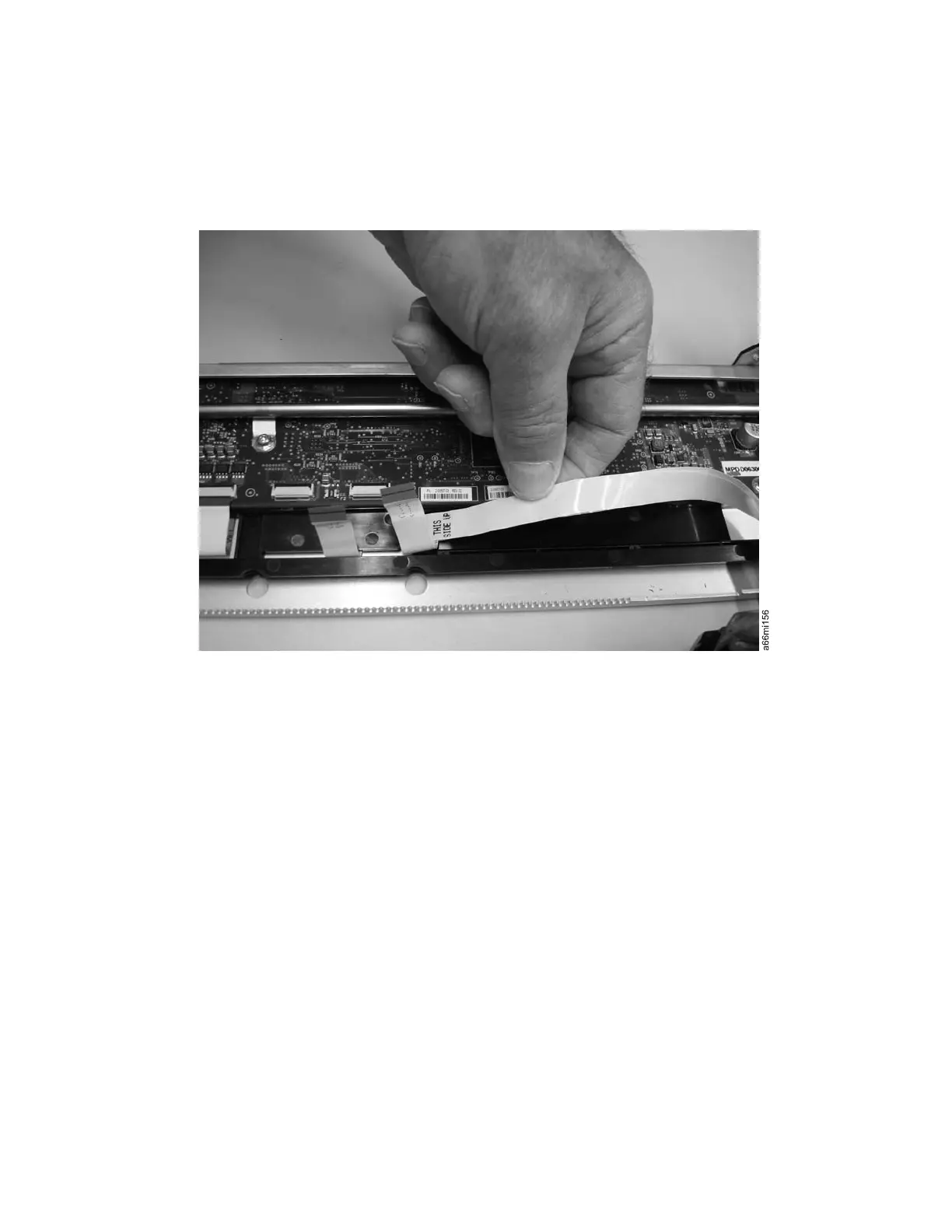

Figure 8-95. Slide cable forward
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-87
