IBM TS3310

To release the gear rack and move it down, follow these steps.
1. Engage the Y-rails of each module in your library configuration. Ensure that the
Y-rails are properly aligned and the thumbscrews are tightened.
1 is the front Y-rail 3 is the Y-rail (this end up)
a77qs005
3
4

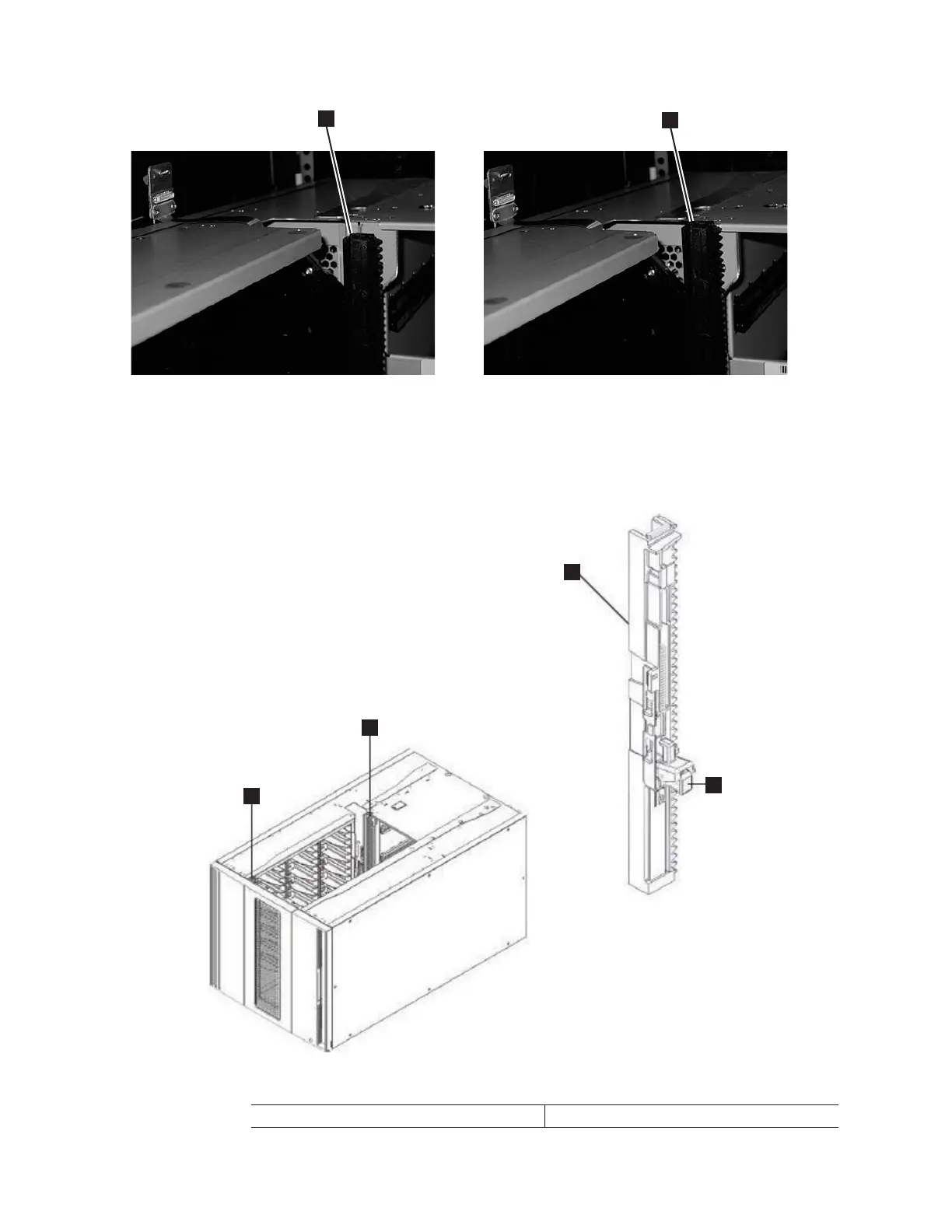

Figure 8-20. Gear racks in the up and down positions
1
2
3
4
a77qs036
Figure 8-21. Placing gear rack in the Down position
8-24 TS3310 Tape Library Maintenance Information
|
|
|
|
