Keithley 4200A-SCS Reference Manual

Appendix
B: Using a Model 590 C-V Analyzer Model 4200A-SCS Parameter Analyzer
Reference Manual
B-18 4200A-901-01 Rev. C / February 2017
C
Output: The measured array of capacitance values
Csize
Set to a value that at minimum is equal to the
Count
; if in doubt, set to 1350
G_or_R
Output:
• When the parallel measurement model (1) is selected, G_or_R is the
measured conductance
• When the series measurement model (0) is selected, this is the measured
resistance
G_or_Rsize
Set to a value that at minimum is equal to the Count; if in doubt, set to 1350
T
The array of time stamps for each measurement step
Tsize
Set to a value that at minimum is equal to the Count; if in doubt, set to 1350
Details

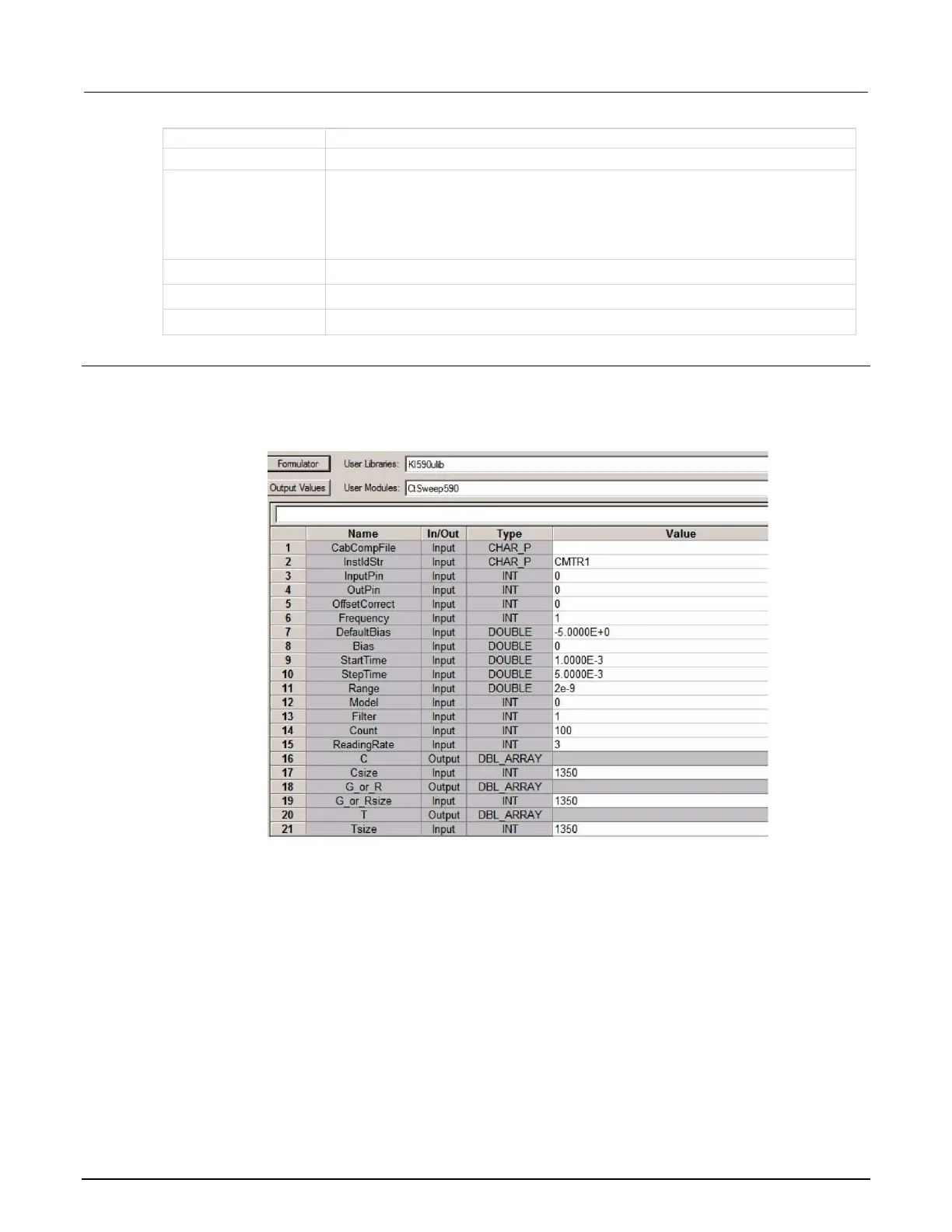

This user module performs a capacitance versus time (Ct) sweep. The figure below shows the default
parameters for the ctsweep-590 UTM, which uses the CtSweep590 user module.
Figure 562: Starting KULT
