Appendix

B: Using a Model 590 C-V Analyzer Model 4200A-SCS Parameter Analyzer

Reference Manual

B-24 4200A-901-01 Rev. C / February 2017

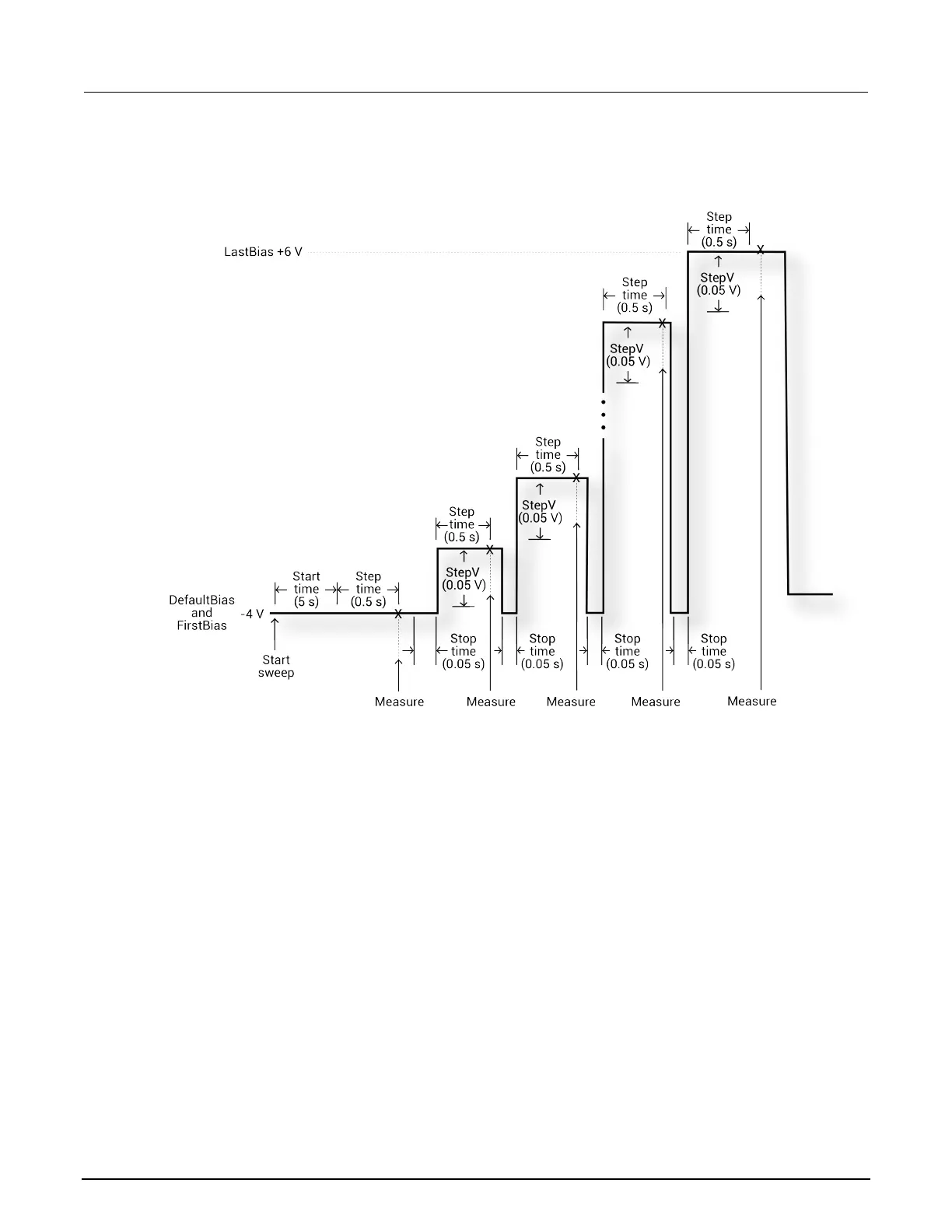

In this example, the 590 outputs a series of pulses in 50 mV steps from −4 V to +6 V. As shown in the

following figure, a measurement is made on each pulse step.

Figure 565: C-V pulse sweep measurements
