Model 4200A

-SCS Parameter Analyzer Reference Manual Appendix B: Using a Model 590 C-

V Analyzer

4200A-901-01 Rev. C / February 2017 B-23

Details

This user module performs a capacitance versus voltage pulse sweep. The figure below shows the

default parameters for the 590-cvpulsesweep UTM, which uses the CvPulseSweep590 user

module.

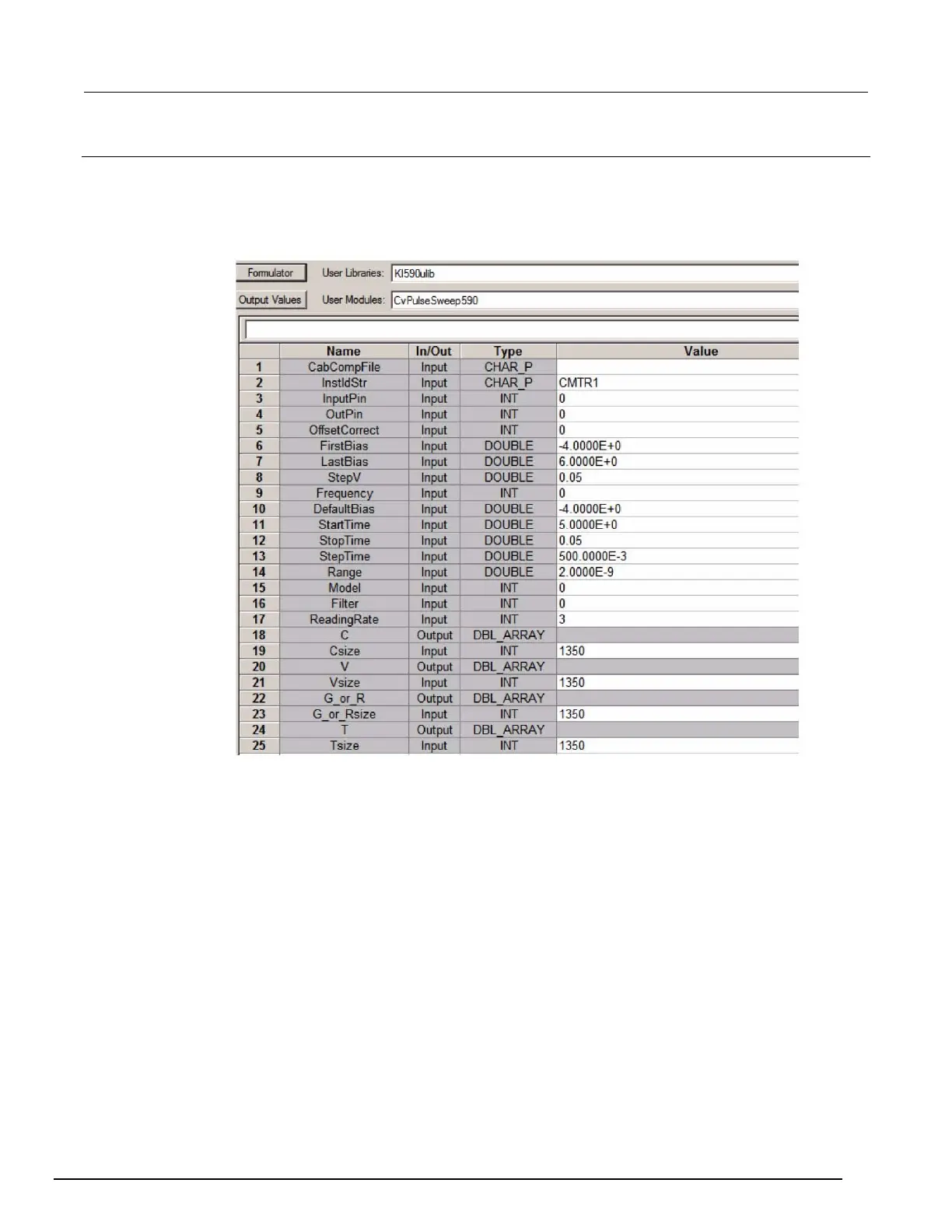

Figure 564: CvPulseSweep590 (cvpulsesweep UTM parameters)
