Model 4200A

-SCS Parameter Analyzer Reference Manual Appendix G:

Using a Cascade Microtech PA200 Prober

4200A-901-01 Rev. C / February 2017 G-9

7. From the ProberBench NT window, double-click the PB-GPIB file.

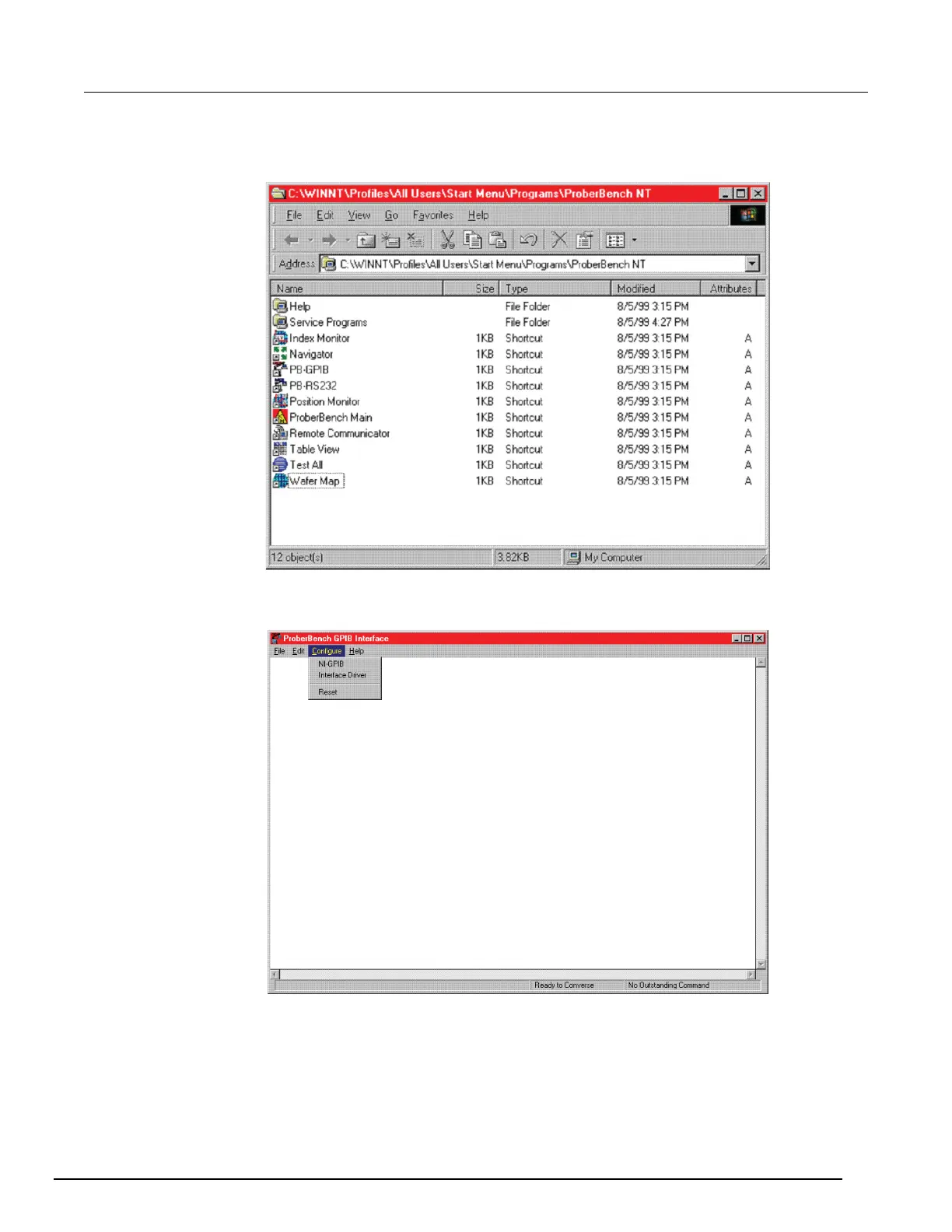

Figure 638: ProberBench NT window

8. From the ProberBench GPIB Interface, from the Configure menu, select Interface Driver.

Figure 639: ProberBench: GPIB interface
