Keithley 4200A-SCS Reference Manual

Appendix
J: Using a Cascade Summit-12000 Prober Model 4200A-SCS Parameter Analyzer
Reference Manual
J-2 4200A-901-01 Rev. C / February 2017
To connect the equipment, connect the 4200A-SCS GPIB port and the probe station PC GPIB port
using a GPIB cable (Model 7007). See the following figure and table for pinouts.

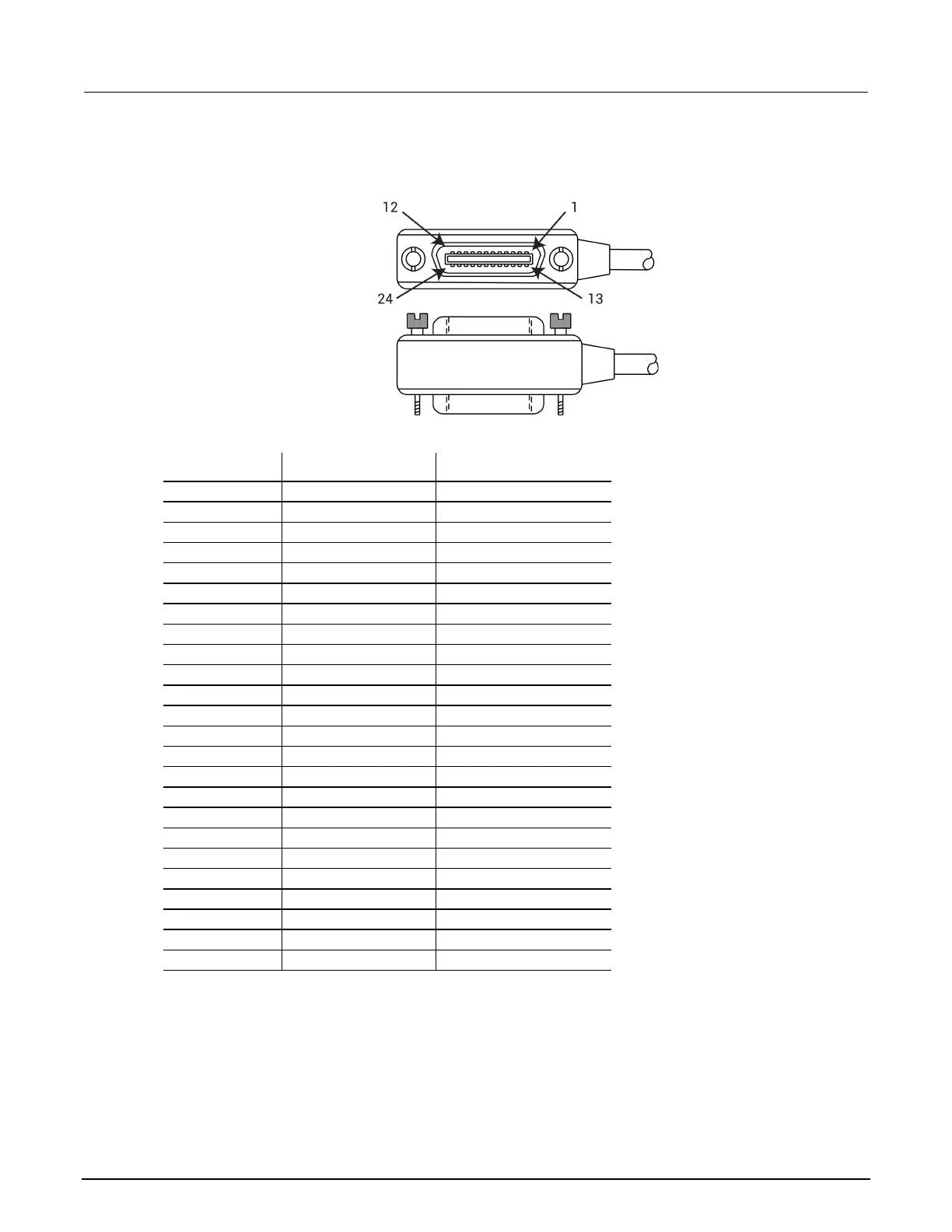

Figure 734: IEEE-488 connector
GPIB control connector terminals
Contact number GPIB designation Type
1
DI01
Data
2
DI02
Data
3
DI03
Data
4
DI04
Data
5
EOI (24)*
Management
6
DAV
Handshake
7
NRFD
Handshake
8
NDAC
Handshake
9
IFC
Management
10
SRQ
Management
11
ATN
Management
12
SHIELD
Ground
13
DI05
Data
14
DI06
Data
15
DI07
Data
16
DI08
Data
17
REN (24)*
Management
18
Gnd (6) *
Ground
19
Gnd (7) *
Ground
20
Gnd (8) *
Ground
21
Gnd (9) *
Ground
22
Gnd (10) *
Ground
23
Gnd (11) *
Ground
24
Gnd, LOGIC
Ground
*Numbers in parentheses refer to signal ground return of referenced
contact number. EOI and REN signal lines return on contact 24.
