Model 4200A

-SCS Parameter Analyzer Reference Manual Appendix J: Using a Cascade Summit-

12000 Prober

4200A-901-01 Rev. C / February 2017 J-3

The following figure shows connections between the Cascade Summit-12000 prober to the Keithley

Instruments 4200A-SCS.

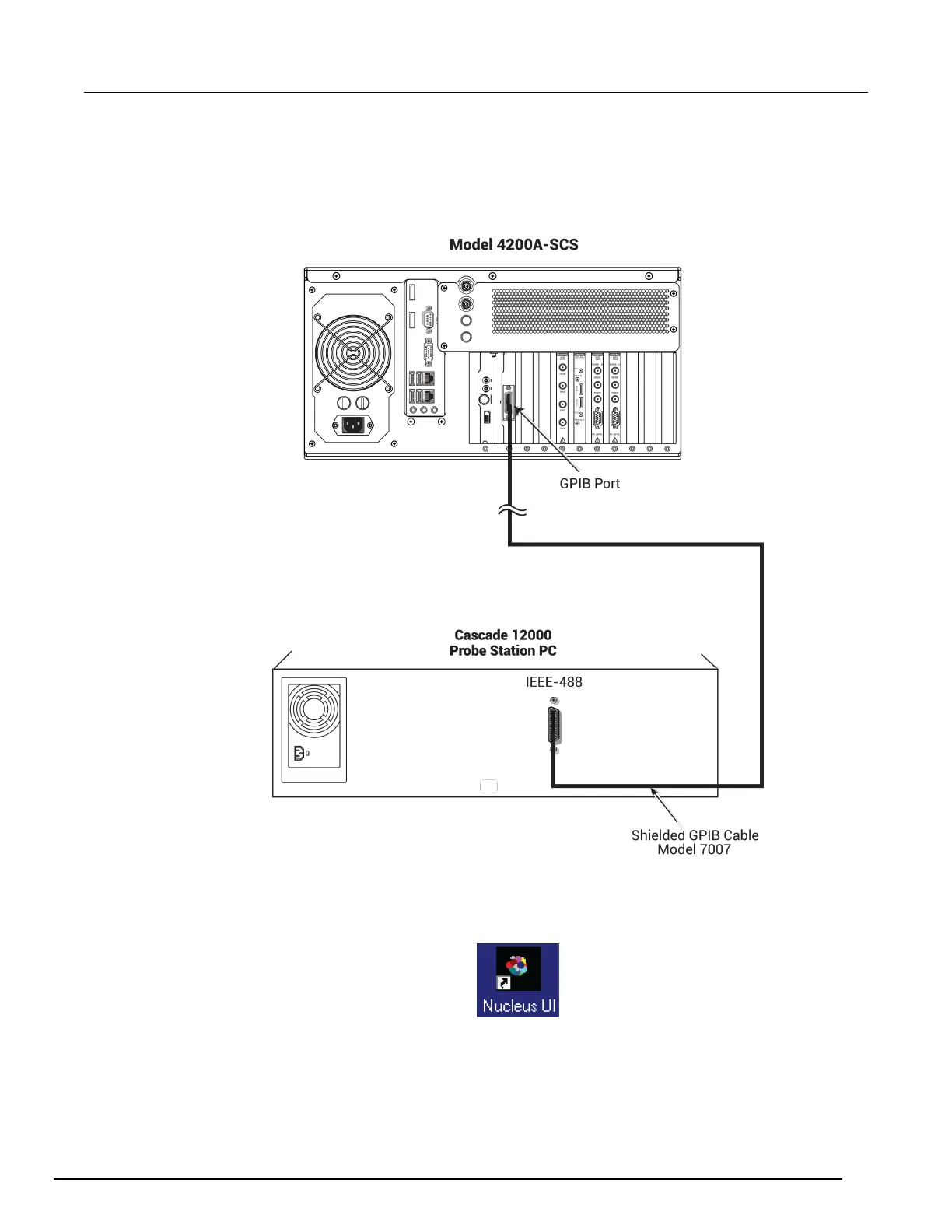

Figure 735: Connection diagram

On the probe station PC:

1. Double-click the Nucleus icon.

Figure 736: Nucleus icon
