13. Select the Talker / Listener and Response On boxes in the Remote Window.
14. Click Setup on the Remote Window to display the Remote Setup dialog box.

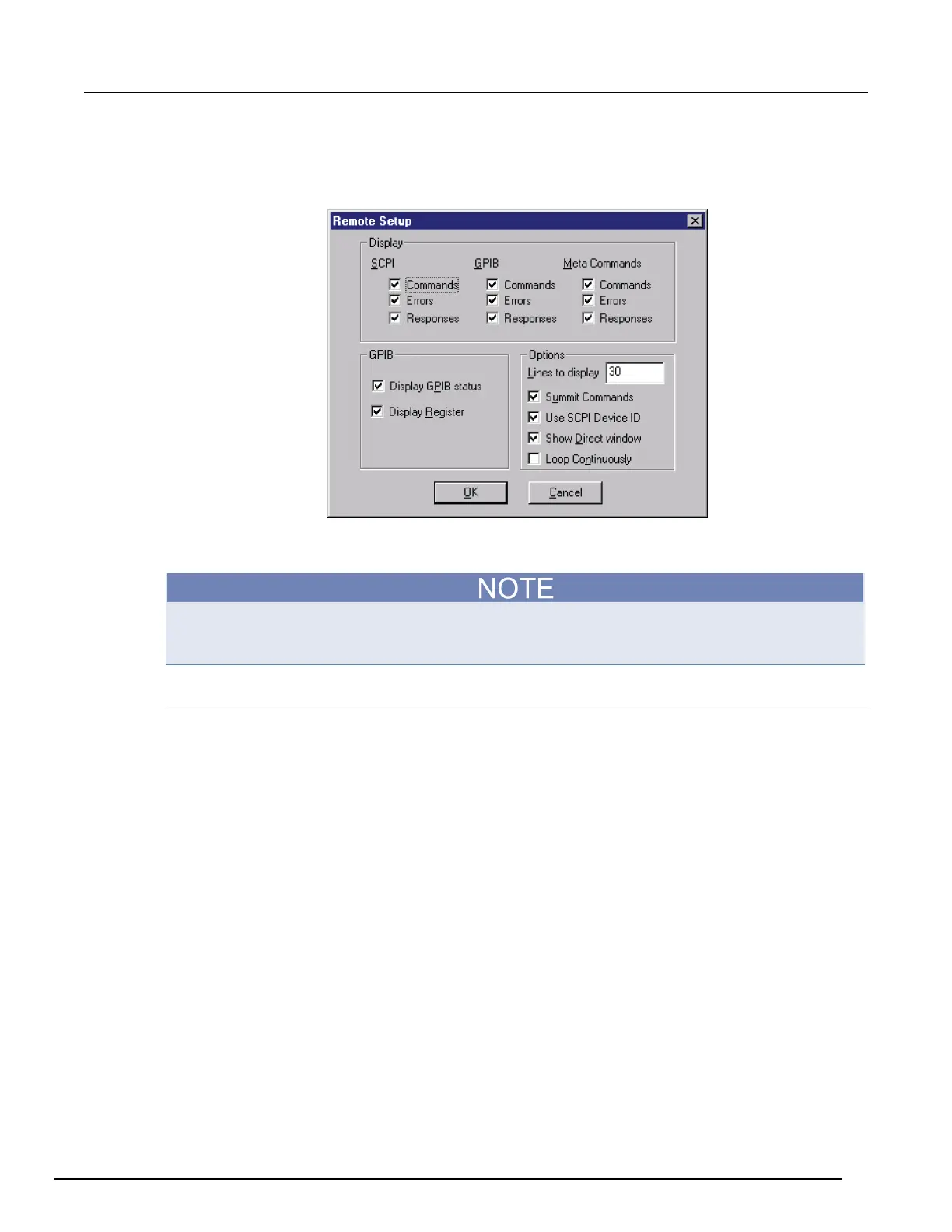

Figure 747: Remote setup window
15. Select the items to be displayed.
16. Click OK.
Selecting boxes on the setup window only affects the DISPLAY properties. It will not change the
GPIB physical setting. Use the dialog box in the GPIB configuration window to make changes to the
GPIB address.
Modifying the prober configuration file
The default prober configuration file is shown below. As shown, the file is configured for use with
GPIB communication. Use a text editor such as Notepad application to open, modify, and save this
file.
If necessary, you can modify this file on the 4200A-SCS. The configuration file location is
C:\s4200\sys\dat\prbcnfg_CC12K.dat
