Appendix

J: Using a Cascade Summit-12000 Prober Model 4200A-SCS Parameter Analyzer

Reference Manual

J-6 4200A-901-01 Rev. C / February 2017

11. Minimize, but do not close, the system manager window.

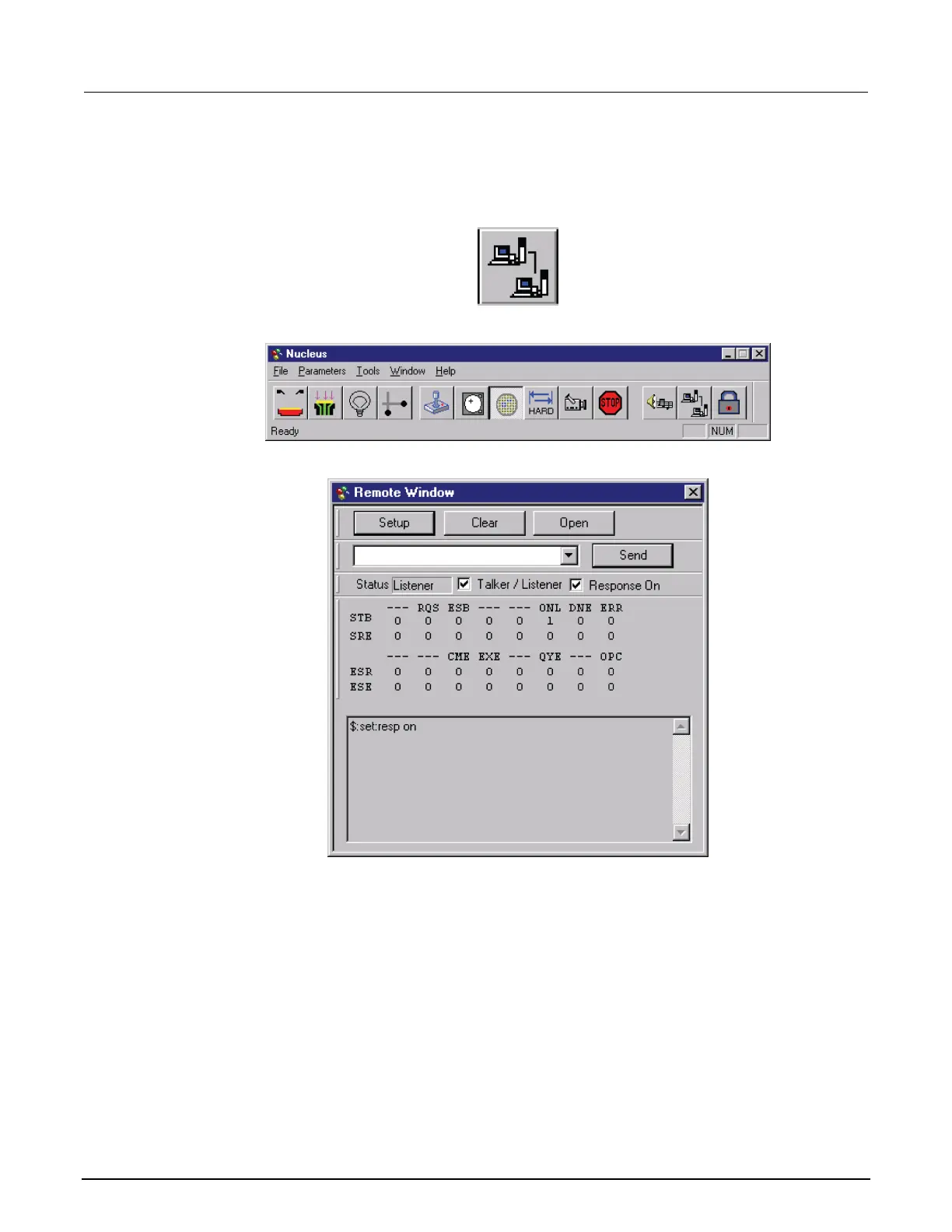

12. Click Remote on the Nucleus UI toolbar to display the Remote Window. See the following three

figures.

Figure 744: Remote button

Figure 745: Nucleus UI toolbar

Figure 746: Remote window
