If the Communications: GPIB component is not on the list, you must add it. To add: Click Add from
the Add component dialog box, then select Communications: GPIB.
6. If the Communications: GPIB component is running, click the Stop button, or proceed to the
next step (setup).
Figure 739: Stop button

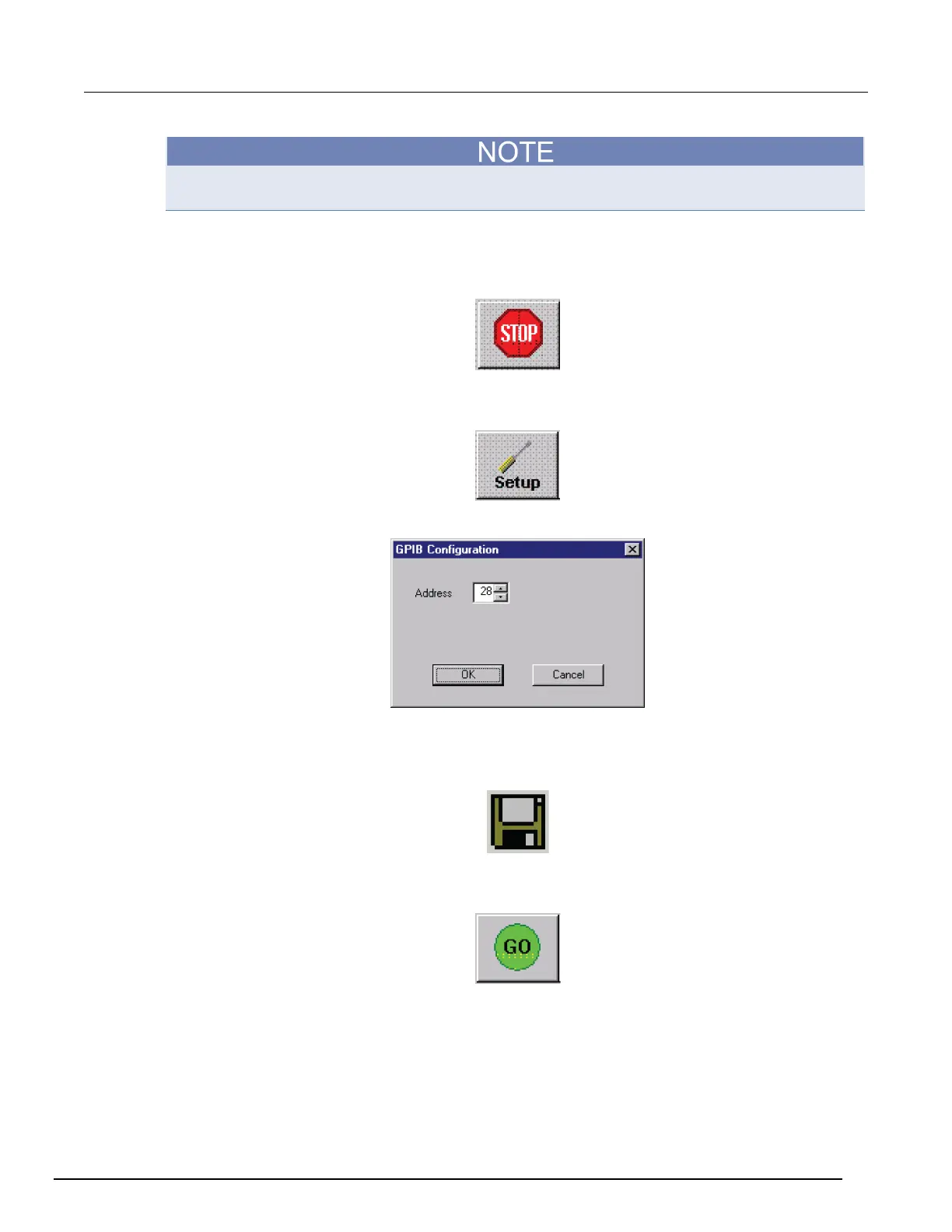

7. Click the Setup button to open the GPIB configuration window.
Figure 740: 4200-901_Setup button.png
Figure 741: GPIB Configuration window
8. Change the address as needed. The default value is 28.
9. Save the configuration file by clicking Save.
Figure 742: Save button
10. Start the component by clicking GO.
Figure 743: GO button
