J-ramp flow diagram
The following diagram from JESD35-A has been reproduced with permission from JEDEC. This
flowchart is JEDEC copyright-protected material.

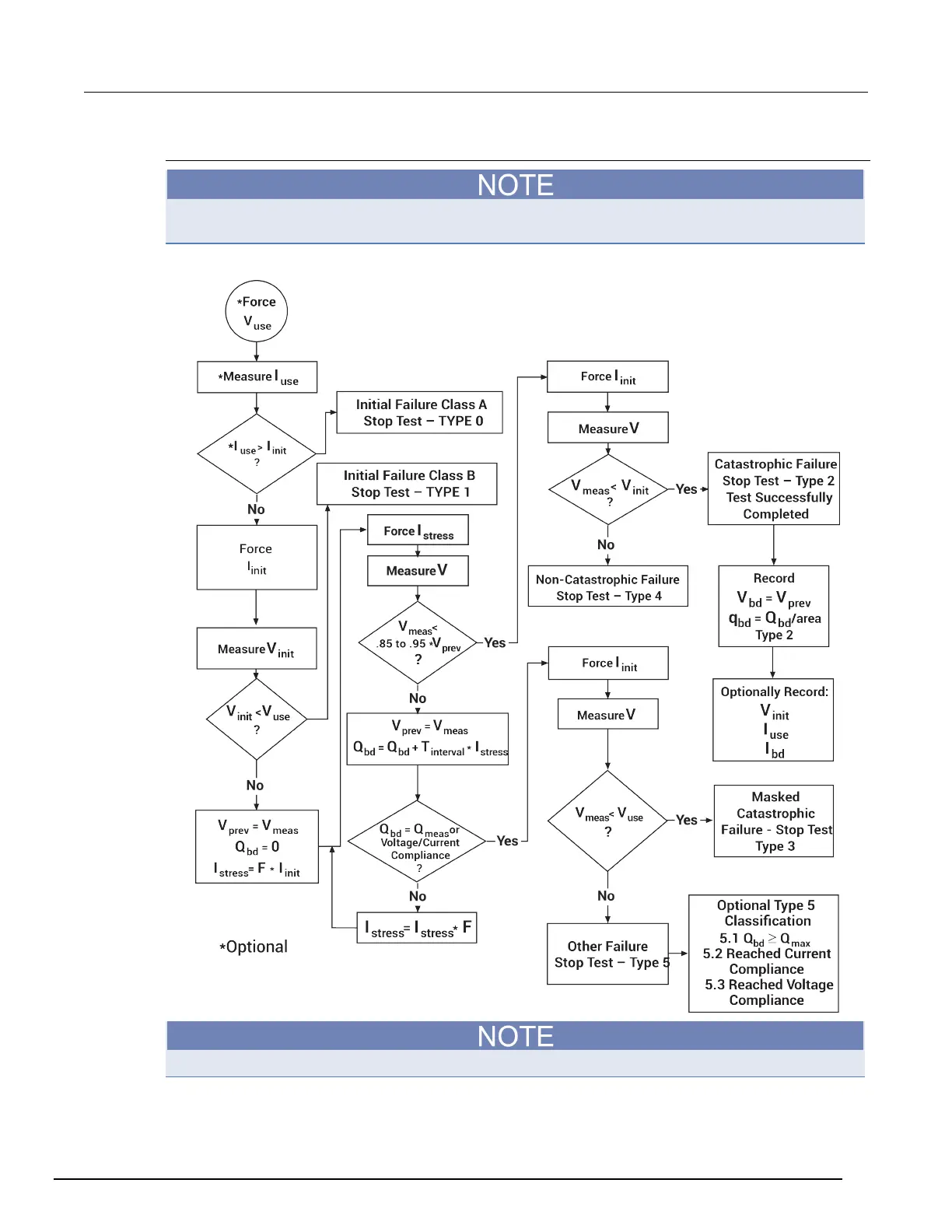

Figure 840: J-ramp flow diagram
All values are absolute – no (+) or (-) signs have been incorporated.
