Model 4200A

-SCS Parameter Analyzer Reference Manual Section 6:

Clarius

4200A-901-01 Rev. C / February 2017 6-7

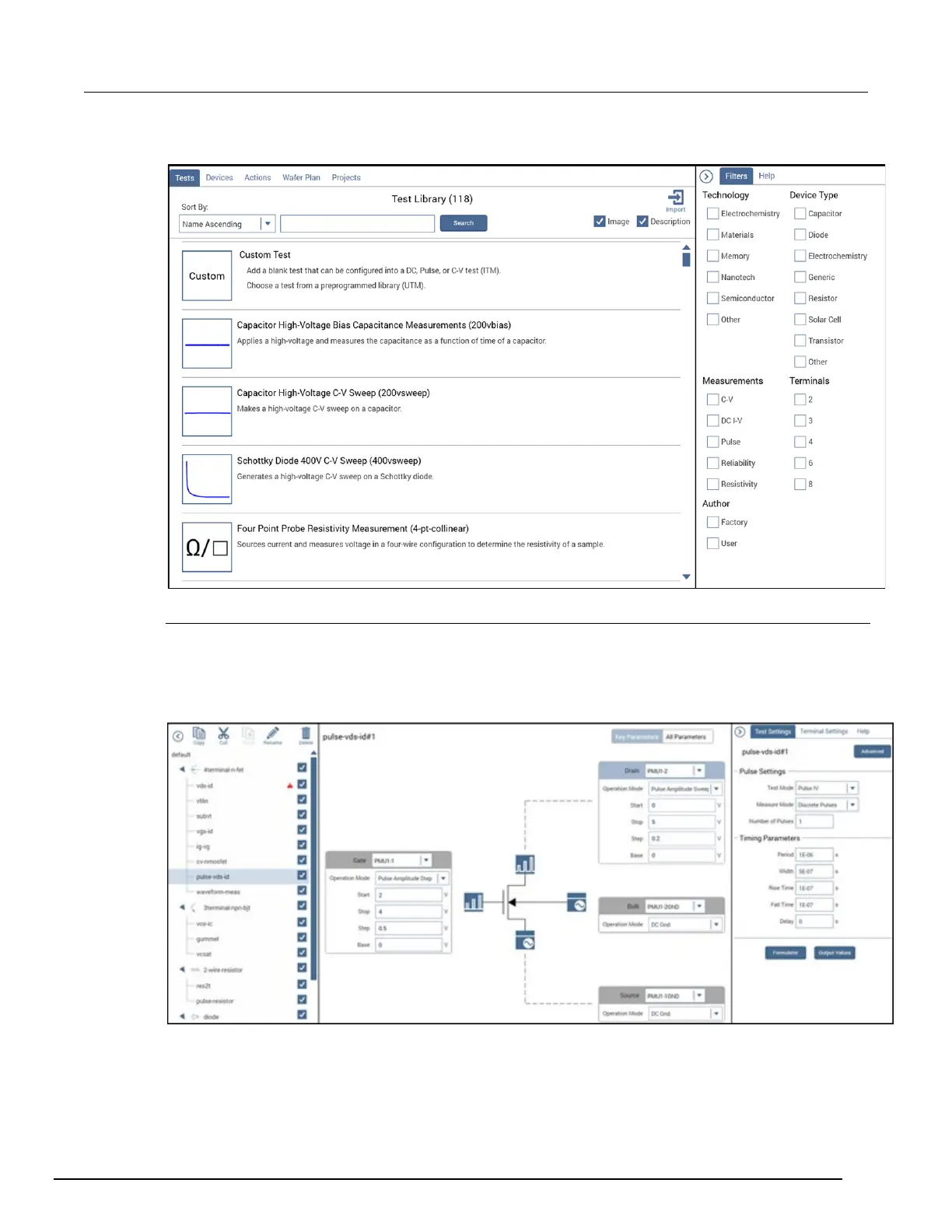

Figure 214: Test library

Configure the project

Select Configure for an item in the project tree to display the settings for that item. Depending on the

item, settings are available in the center and right panes. Help for the selected item is also available

in the Help pane.

Figure 215: Configure pane for the pulse-vds-id test
