6: Clarius Model 4200A-SCS Parameter Analyzer
6-8 4200A-901-01 Rev. C / February 2017
Analyze data
When you run tests, you can display and analyze test results and test definitions in the Analyze pane.
The Analyze pane displays data in a spreadsheet and as a graph.
The View options change the view from both spreadsheet and graph to only the spreadsheet or only
the graph. You can use Save Data to save the graph to a png or bmp image file or save the data into
an xls spreadsheet file.
If the Formulator was used to calculate data for this test, the Run Formulas List displays the
calculations. You can select Edit to open the Formulator and edit the formulas or create new ones.
The Graph Settings allow you to change the display of the data on the graph.
The Run History pane on the right displays the time and name of each test run. When you select a
run from Run History, the sheet and graph in the center pane change to show the data from that test
run.
The Terminal Settings pane, also on the right, displays the settings for the presently selected test.

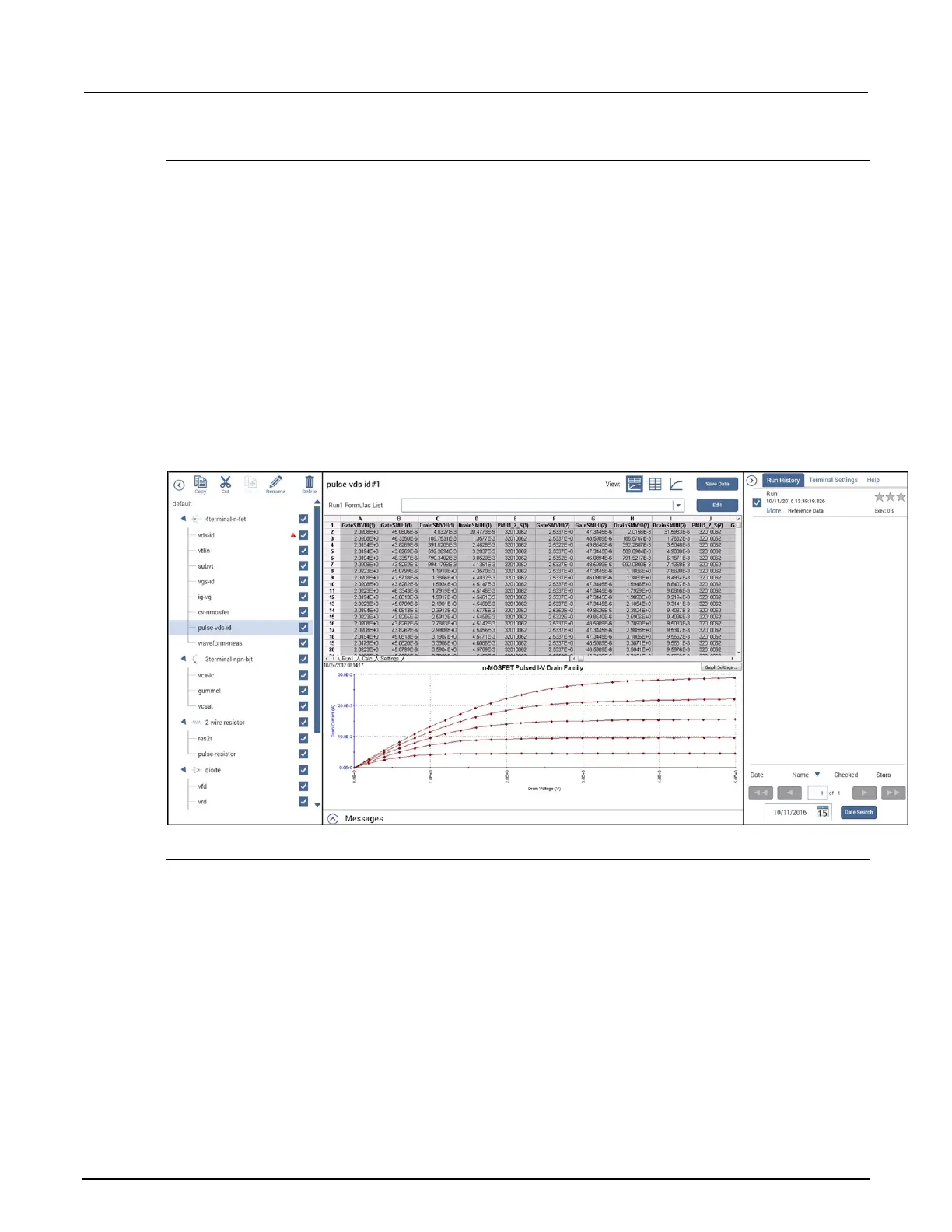

Figure 216: Analyze pane for the pulse-vds-id test
Messages
Messages regarding the test and execution are displayed at the bottom of the Clarius window. To
expand the Messages window to view more detail, select the up arrow to the left of the Messages
heading.
You can right-click a message to copy it or to select and copy all messages to the clipboard.
You can also right-click and select Clear All to remove the existing messages.
