6: Clarius Model 4200A-SCS Parameter Analyzer
6-56 4200A-901-01 Rev. C / February 2017
The data points are rounded to the nearest value.

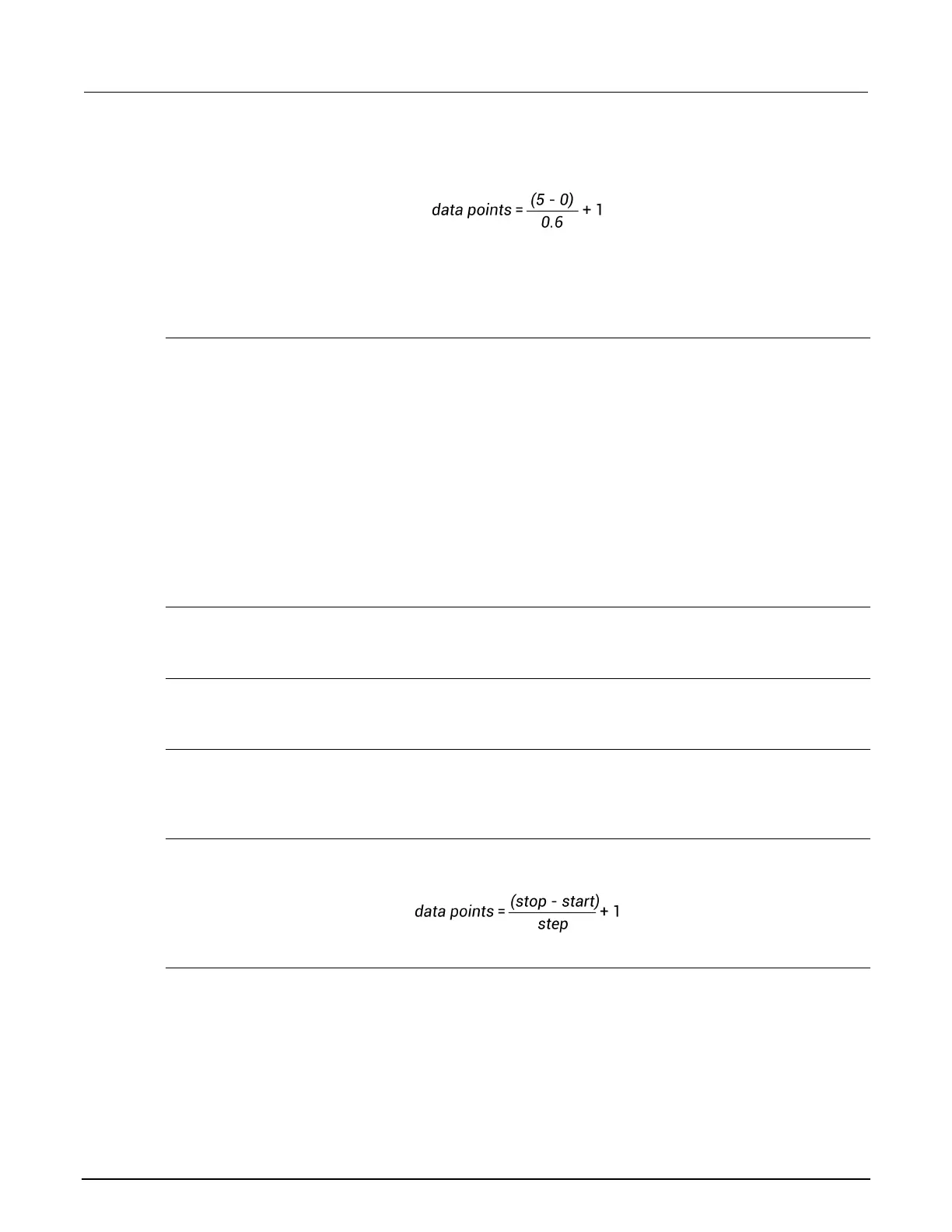

For example, if Start = 0 V, Stop = 5 V, and Step = 0.6 V:
In this case, the Step value is forced to 0.625 V, which results in a data point value of 9.333, which is
rounded to 9. The instrument forces nine voltages at 0 V, 0.625 V, 1.25 V, 1.875 V, 2.5 V, 3.125 V,
3.75 V, 4.375 V, and 5 V.
List Values
Select Enter Values to open a dialog box in which you can type the current or voltage level for each
step of the sweep in the rows. You can type any valid instrument current or voltage.
You can select a value or multiple values in the list and copy, cut, or delete them. Use Paste to add
values that you copied or cut to a new location in the list.
Note that you cannot have blank rows in between values.
You can use the Ctrl key plus mouse selections to pick selected rows, then use the buttons to copy,
cut, or delete those rows. Note that when you paste the rows, any skipped rows are ignored (there
will be no blank rows).
You can use the Shift key plus mouse selections to pick a range of rows. When you paste the rows,
any blank rows are ignored.
Start Frequency
The frequency at which the sweep starts.
Stop Frequency
The frequency at which the sweep stops.
Frequency Points
The number of frequency points to sweep. This is calculated from the start and stop frequency
values.
Points
The number of data points that will be measured. This value is calculated by Clarius using the
information entered for the Start, Stop, and Step parameters, using the equation:
Points (list sweep)
The number of sweep points that were defined in the List Values list. This number is automatically
generated.
