Dual Sweep
When you select Dual Sweep, the instrument sweeps from start to stop, then from stop to start. When
you clear Dual Sweep, the instrument sweeps from start to stop only.
The following figure compares a single sweep to a dual sweep.

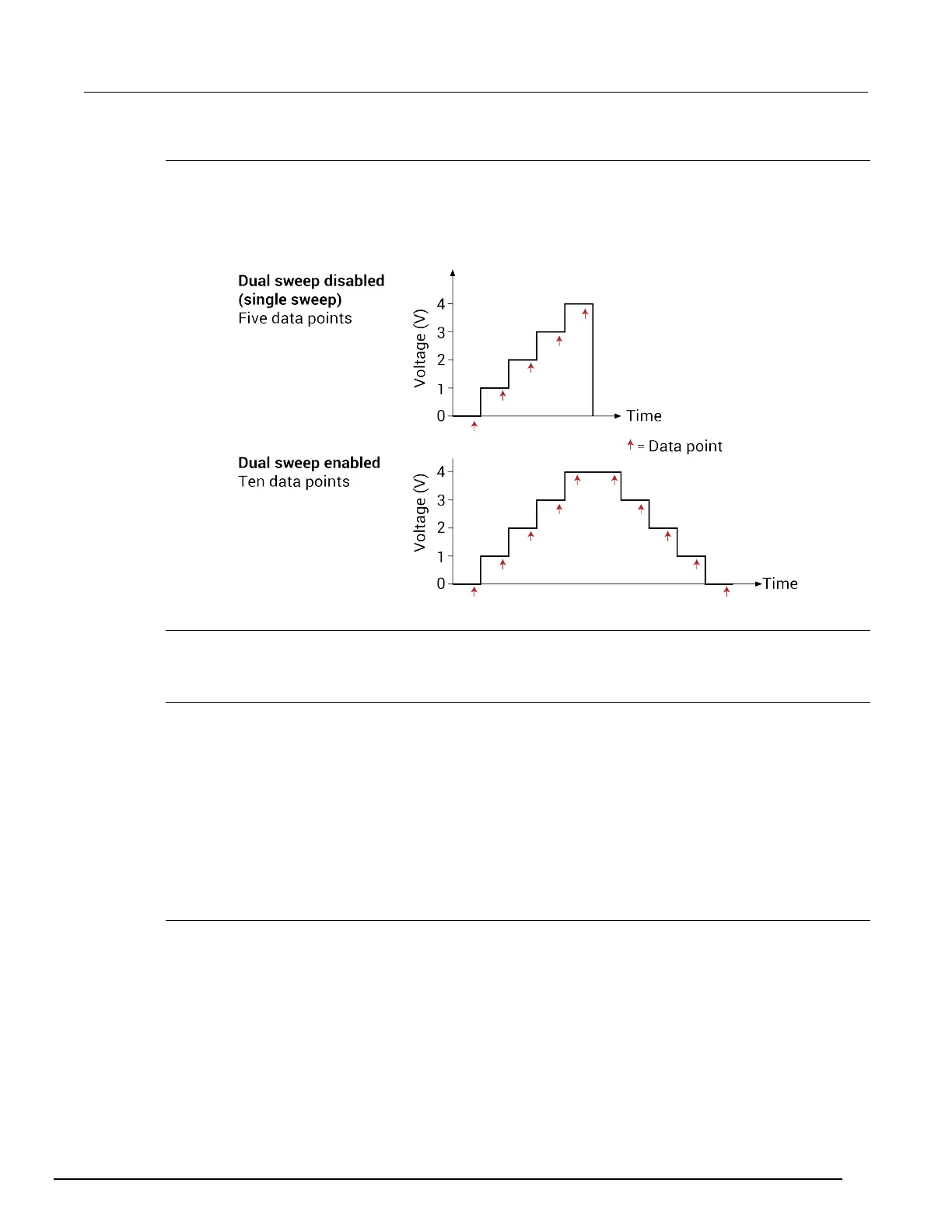

Figure 239: Single and dual sweep examples (linear voltage sweep; 0 V to 4 V in 1 V steps)
DC Bias
The DC bias range accepts a value between −30 V to 30 V.
Frequency
Select the frequency from the list.
For sweeps, the AC drive conditions include frequency (Hz) and voltage (mV
RMS
). You can set
frequency to the following values:
• 1 kHz through 10 kHz in 1 kHz steps
• 10 kHz to 90 kHz in 10 kHz steps
• 100 kHz to 900 kHz in 100 kHz steps
• 1 MHz to 10 MHz in 1 MHz steps
AC Drive Signal
The AC drive signal accepts a value between 10 mV and 100 mV.
