DCV Column Name
Available if you select Report Test Conditions. Determines the name of the column that contains the
DC bias information in the Analyze sheet where this data is reported. You can change the name of
the column by typing a new value.
This cannot be left blank. If it is left blank, Clarius uses the previous value.
If you change the name, it is updated when the test is run. The results from earlier tests that are
available through Run History are not changed to the new name.
Freq Column Name
Available if you select Report Test Conditions. Determines the name of the column that contains the
frequency information in the Analyze sheet where this data is reported. You can change the name of
the column by typing a new value.
This cannot be left blank. If it is left blank, Clarius uses the previous value.
If you change the name, it is updated when the test is run. The results from earlier tests that are
available through Run History are not changed to the new name.
Report Status (CVU)
When this option is selected, Clarius records measurement status information when the test
executes. A column of the Analyze spreadsheet displays this information. Hover over a cell to review
the information. An example of the status information is displayed in the following figure.

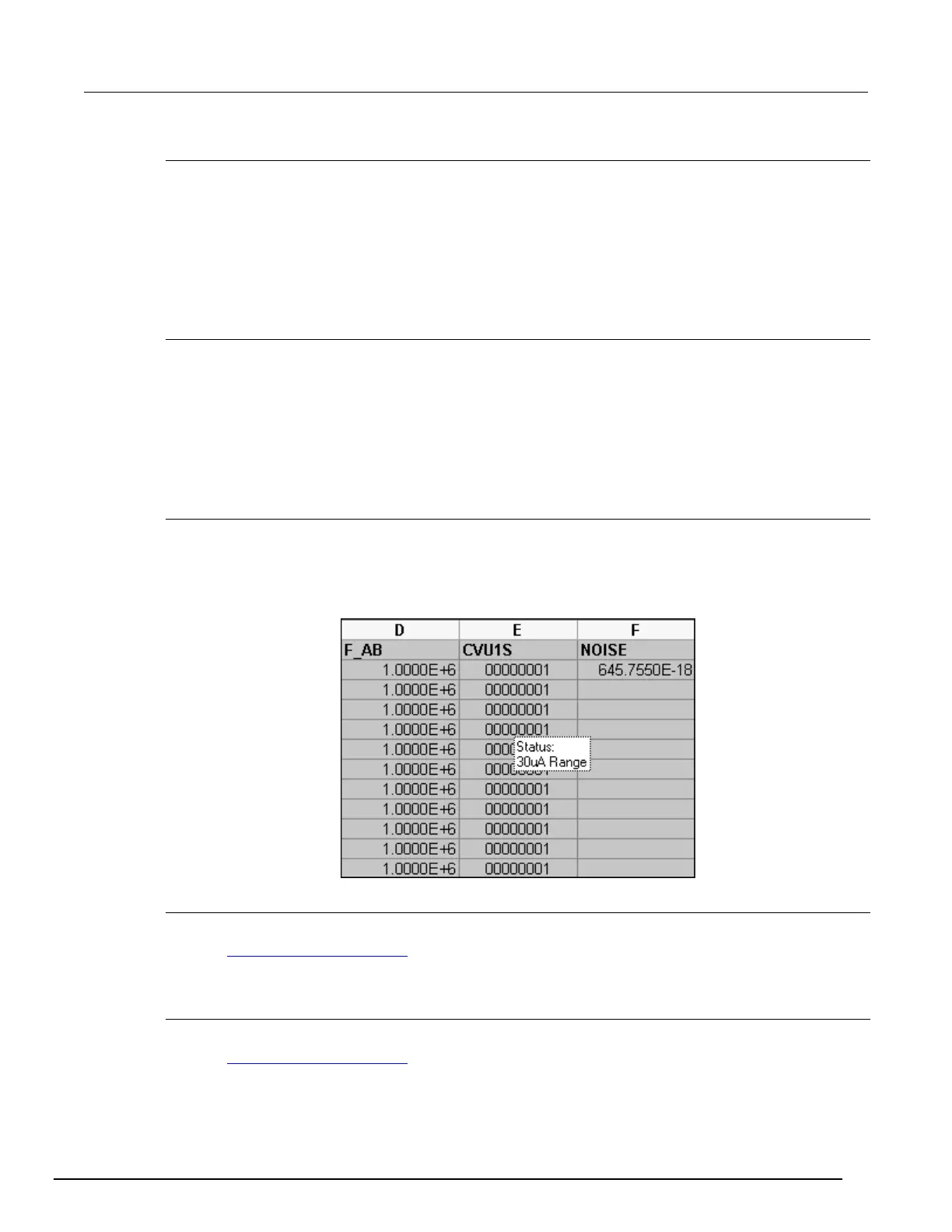

Figure 240: Report Status column for CVU in Analyze sheet
Open
Use the CVU connection compensation value that was generated for open connection compensation.
Refer to Connection compensation (on page 4-10
) for information on generating and using
compensation values.
Short
Use the CVU connection compensation value that was generated for short connection compensation.
Refer to Connection compensation (on page 4-10
) for information on generating and using
compensation values.
