Voltage Sample Waveform
Makes voltage measurements on the waveform. Available when the Test Mode is set to Waveform
Capture.
Report Timestamps
Available when the Test Mode is set to Waveform Capture. When Report Timestamps is enabled,
each measurement includes a timestamp and the waveform is graphed (voltage/current versus time)
in the Analyze graph.
Report Status (PMU)
When this option is selected, Clarius records measurement status information when the test
executes. A column of the Analyze spreadsheet displays this information. Hover over a cell to review
the information. An example of the status information is displayed in the following figure.

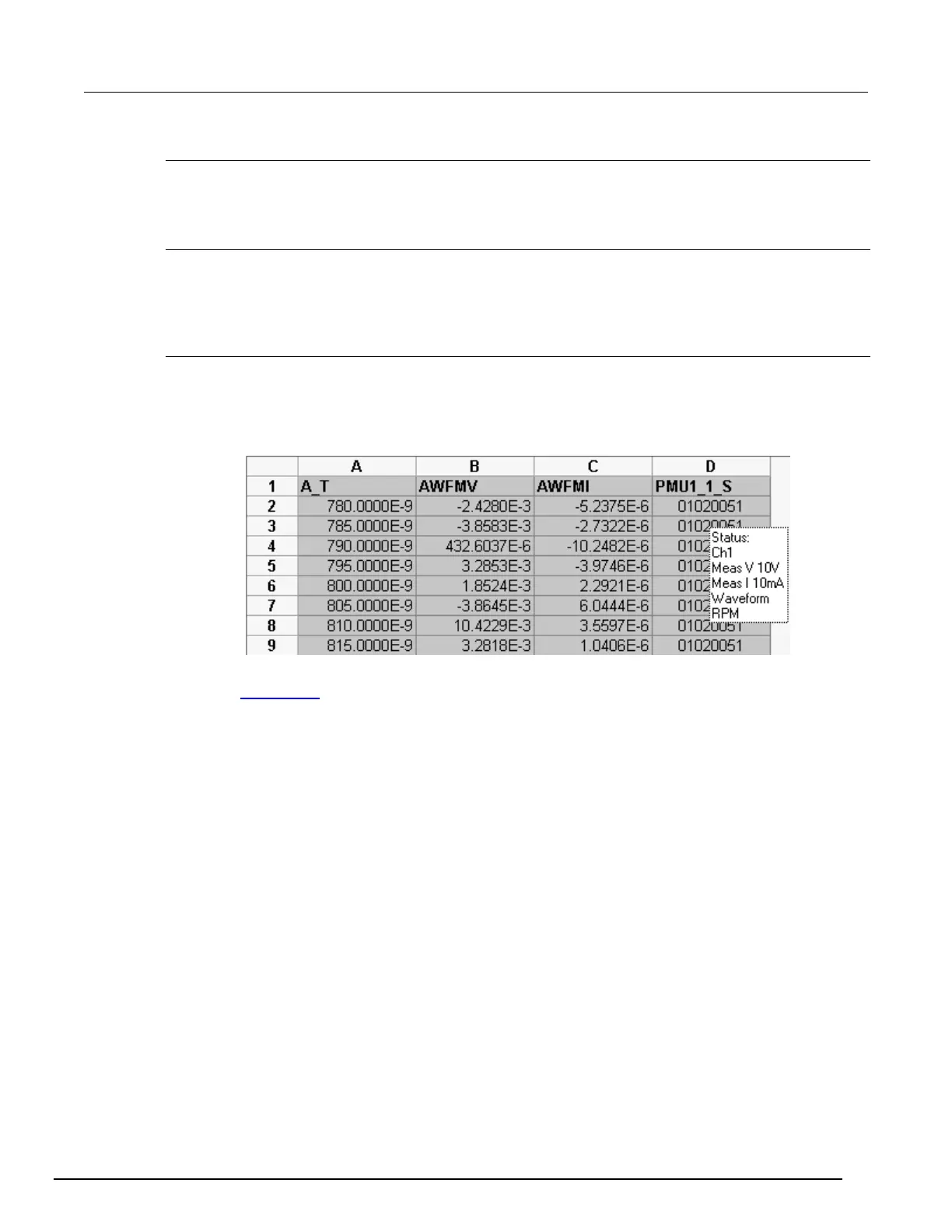

Figure 253: Report Status for PMU in the Analyze sheet
For PMU measurements, this information is also available as a 32-bit word. The status code bit map
is listed in pulse_fetch (on page 13-101
).
