6: Clarius Model 4200A-SCS Parameter Analyzer
6-76 4200A-901-01 Rev. C / February 2017
PMU measurement status
ITMs can provide status information for the 4225-PMU measurements in the Analyze sheet Run tab.
The column for the status codes is labeled PMUx_y_S, where x is the PMU instrument number
(PMU1, PMU2, and so on), and y is channel number (channel 1 or 2). The PMU status code indicates
pulse measurement status, source and measure ranges, whether an RPM is connected, and load-line
effect compensation (LLEC) status, and flags any faults (errors).
If a pulse measurement fault occurs, the entire row of data related to the measurement is highlighted
in blue (see next figure). A single measurement may have more than one condition. Hover over a cell
to review the status information.
The data values in the flagged data row are color-coded to identify the fault type as follows:
• Red = Source in compliance
• Magenta = Measurement overflow
• Yellow = LLEC failed
• Blue = Current, voltage, or power threshold reached

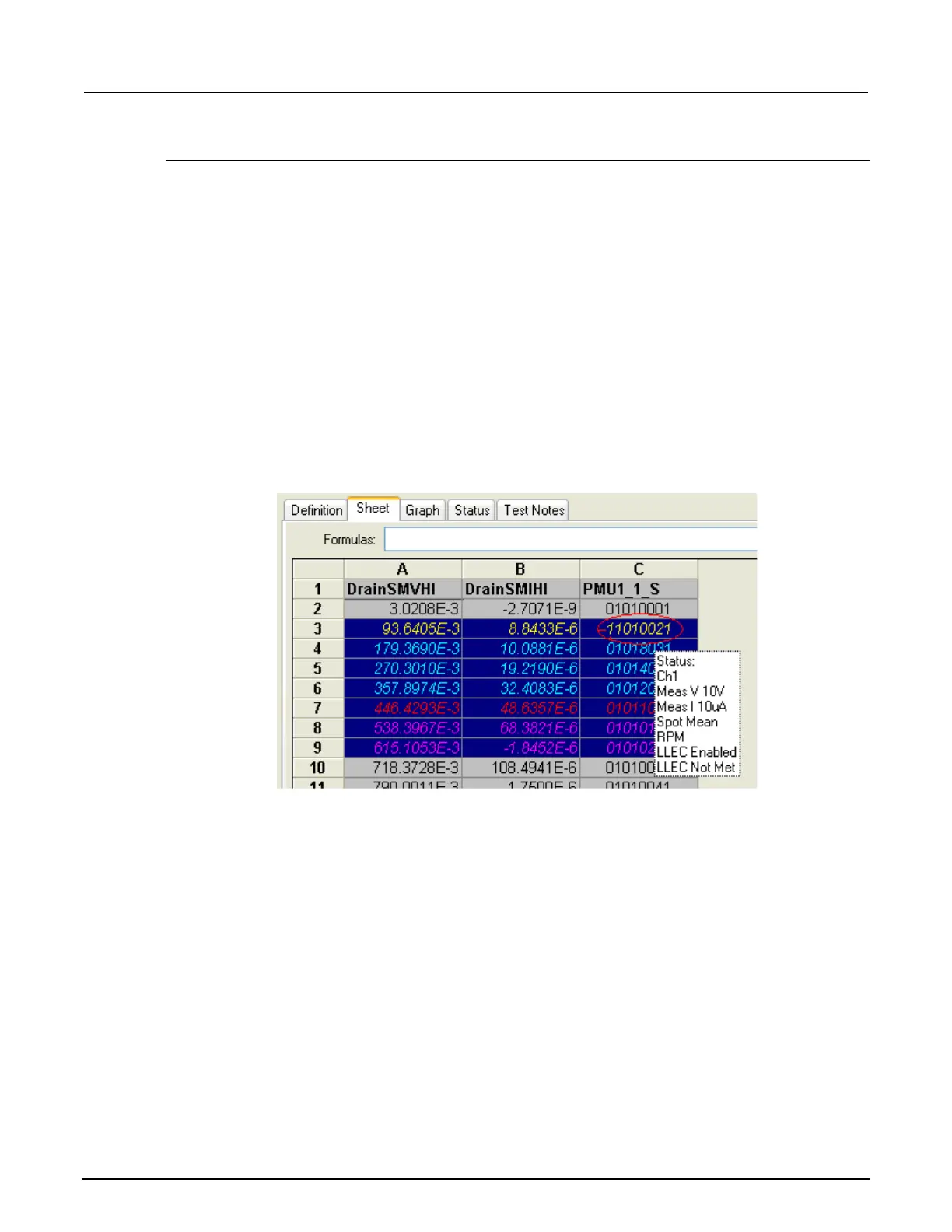

Figure 254: Status tab showing faults
