The following figure shows the UTM UI Parameter Configuration dialog box for the parameter
currentMeasureRng.
The Use Case Condition field conditionally displays the Displayed Name in the list box. The
expression you enter in this field must evaluate to True or False. If blank, the condition is evaluated
as True. In other words, this field is evaluated as:
IF the Use Case Condition = True, THEN show the Displayed Name in ListBox
For example, in the figure below, the Use Case Condition of the first line means, “If voltsSourceRng is
equal to 40, then display 800 mA” in the list. This effectively allows the 800 mA range to display and
be selected when the voltage range is set to 40 V.
Note the complexity of the currentMeasureRdg lower-current use case conditions. These use case
conditions account for the three different sets of current measure ranges, which depend on the
voltage range selected (10 V or 40 V) and the presence of a 4225-RPM (which adds the lower current
measure ranges to the 10 V range). For this parameter, the content of the list box is described below.
ListBox “Use Case Condition” keywords and operators (on page 6-122
) lists keywords and operators
available for use in the Use Case Condition field.

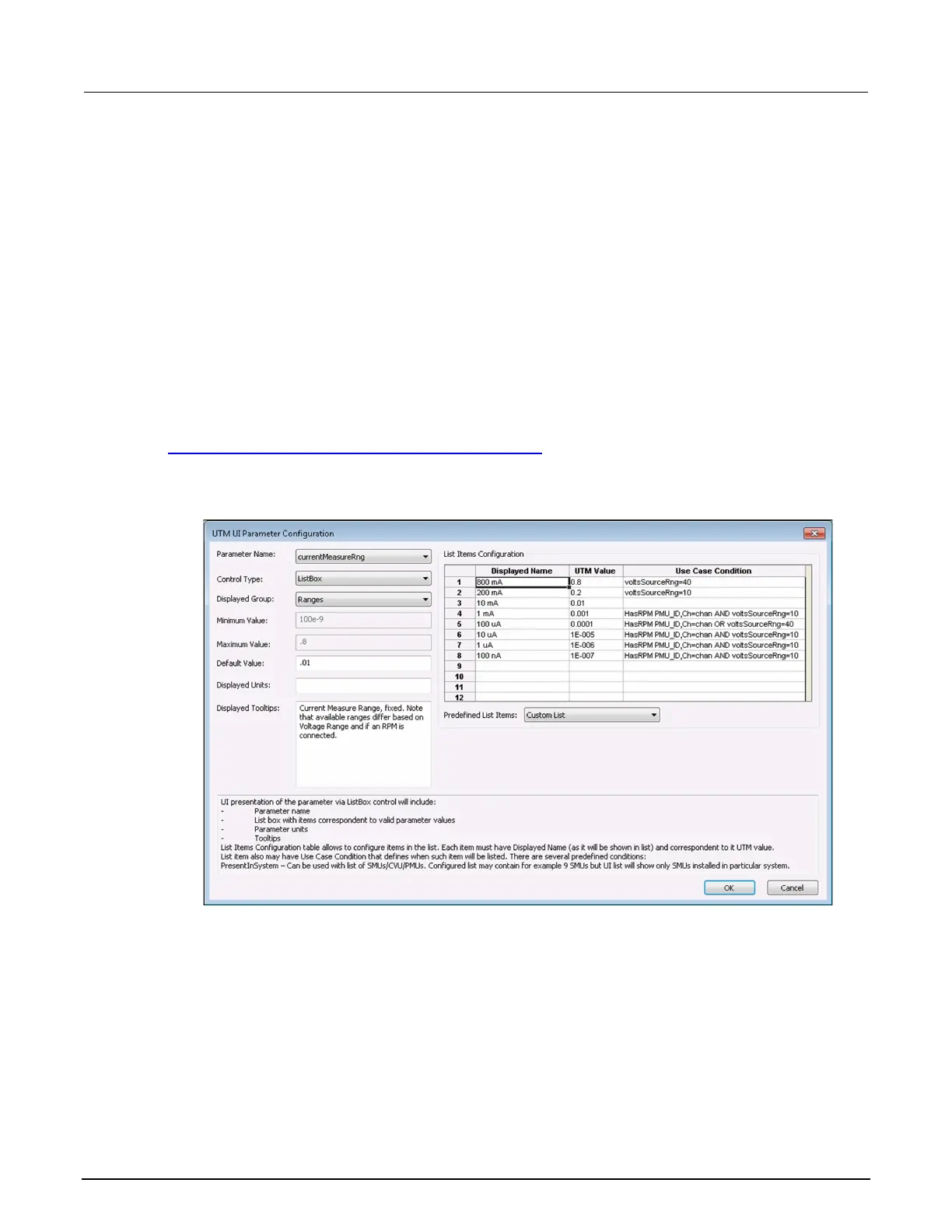

Figure 281: ListBox UTM UI Parameter Configuration for currentMeasureRng
