Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 6: Clari
us
4200A-901-01 Rev. C / February 2017 6-121

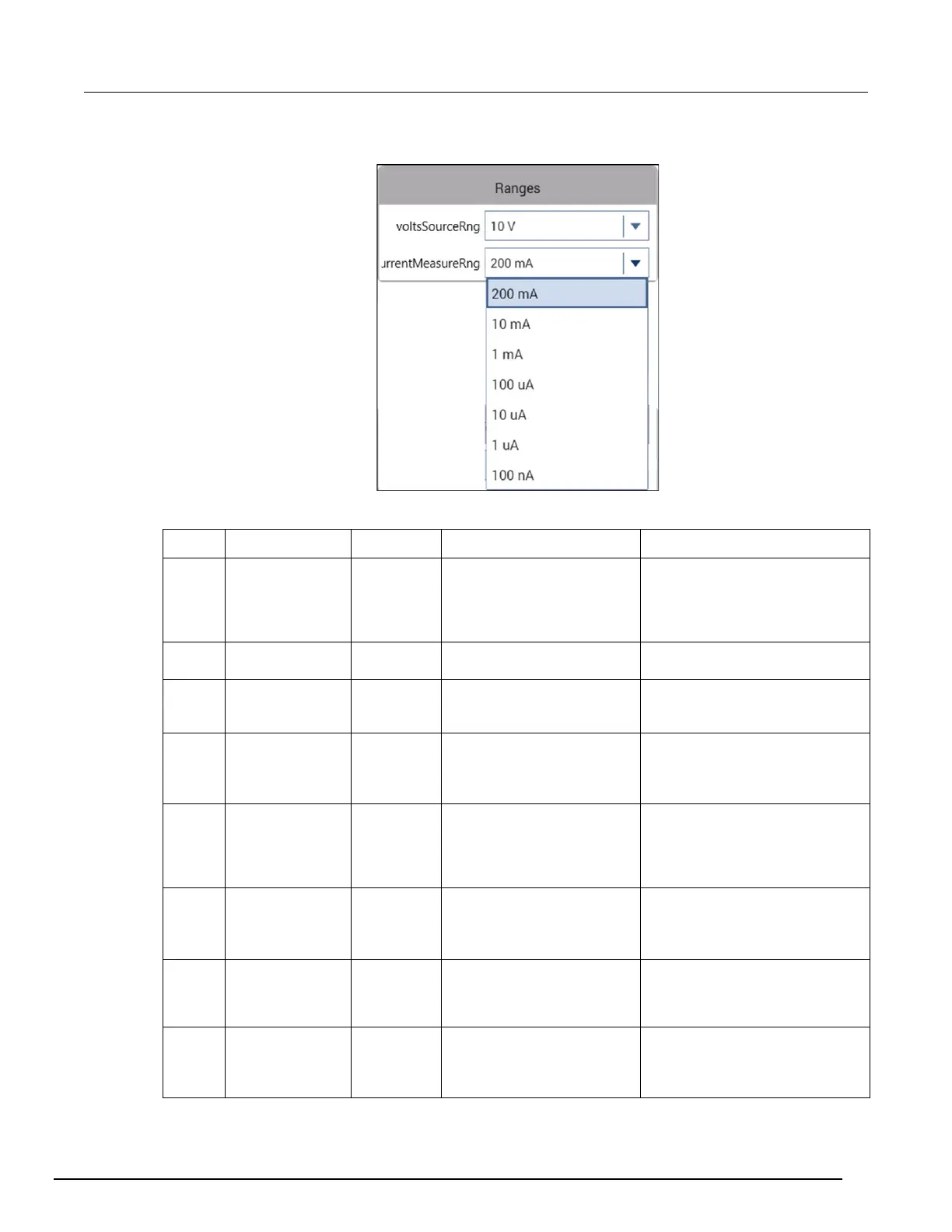

Figure 282: currentMeasureRng list box with a connected RPM
Displayed Name UTM Value Use Case Condition Comment
1 800 mA 0.8
voltsSourceRng=40
Display this name when the
chosen voltage range = 40 V; the
40 V range has 800 mA, 10 mA,
and 100 µA current measure
ranges
2
200 mA
0.2
voltsSourceRng=10
Display this name when the
chosen voltage range = 10 V
3 10 mA 0.01
Always display, as the 10 V, 40 V
and RPM have a 10 mA measure
range
4
1 mA
0.001
HasRPM PMU_ID,Ch=chan
AND
voltsSourceRng=10
Display this name only when the
voltage range is 10 V and there is
an RPM on the chosen channel
(variable name = chan)
5
100 μA
0.0001
HasRPM PMU_ID,Ch=chan
OR
voltsSourceRng=40
Display this name in 2 cases: if
there is an RPM or the voltage
range is 40 V. The 40 V range has
800 mA, 10 mA, and 100 µA
current measure ranges
6
10 μA
1E-005
HasRPM PMU_ID,Ch=chan
AND
voltsSourceRng=10
Display this name only when the
voltage range is 10 V and there is
an RPM on the chosen channel
(variable name = chan)
7
1 μA
1E-006
HasRPM PMU_ID,Ch=chan
AND
voltsSourceRng=10
Display this name only when the
voltage range is 10 V and there is
an RPM on the chosen channel
(variable name = chan)
8
100 nA
1E-007
HasRPM PMU_ID,Ch=chan
AND
voltsSourceRng=10
Display this name only when the
voltage range is 10 V and there is
an RPM on the chosen channel
(variable name = chan)
