The Minimum, Maximum, and Default Values are defined in the KULT user module. To change the
Minimum and Maximum Values, you must use KULT. You can edit the Default Value in Clarius.
InputArray control
Use the input array control (InputArray) for array input types in user modules. Configure the
parameter variable types using the Parameters tab in KULT (see Parameters tab area (on page 8-4
)).
For this control type, the example uses the vlfcv_measure_sweep_freq user module, which is in
the VLowFreqCV user library. When placed in the UTM UI, the user can select the Enter Values
button and enter array values, as shown in the figure below.
Make sure the values the user enters in the array tables are contiguous (no blank rows in the middle
of filled cells). An error results if one (or more) blank row is in the table before the end of the data.

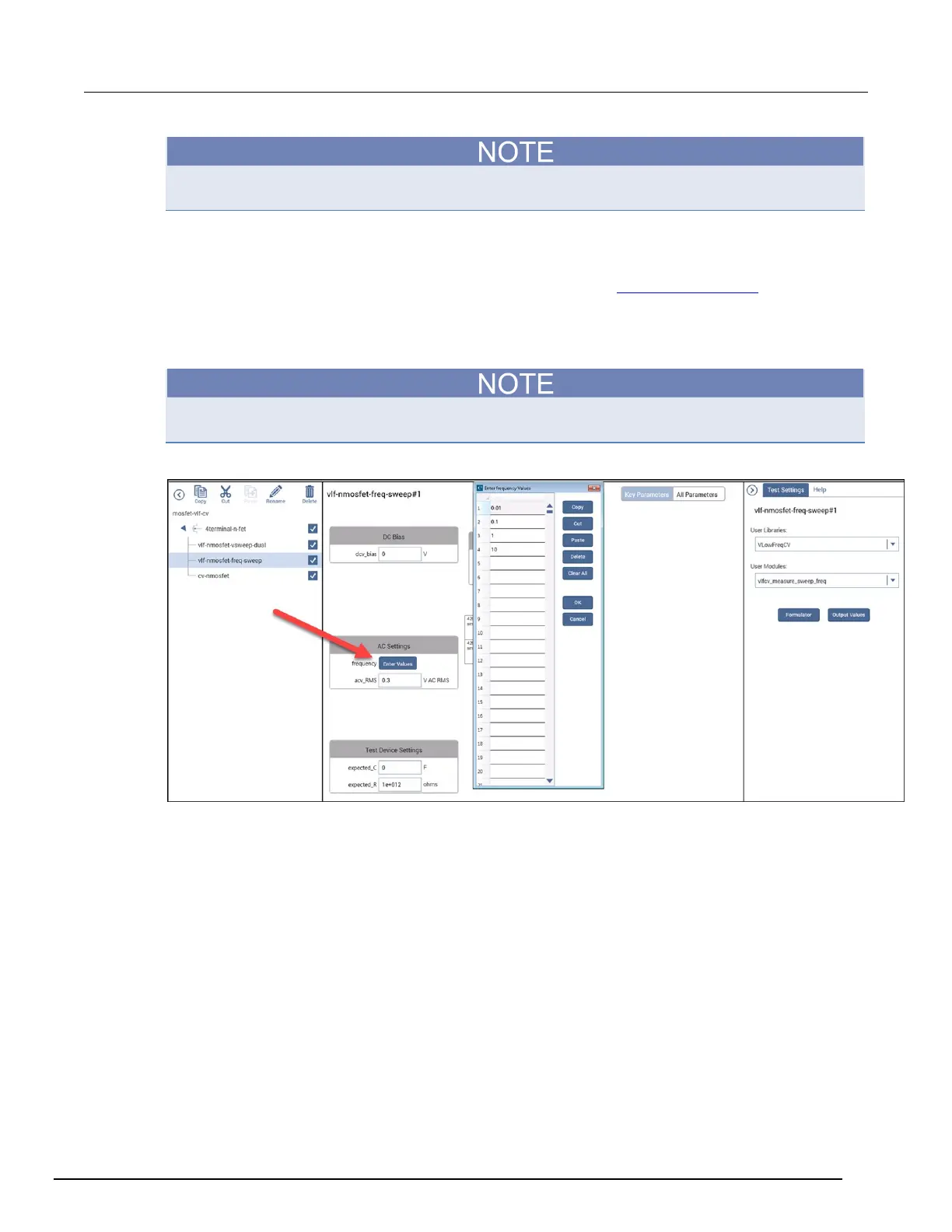

Figure 285: UTM Key Parameters InputArray control
