Section

6: Clarius Model 4200A-SCS Parameter Analyzer

Reference Manual

6-126 4200A-901-01 Rev. C / February 2017

The configuration of an input array control, shown below, is similar to an edit box. The user module

does not provide support for the minimum, maximum, or default values for the arrays; only the UTM

UI provides this capability. The minimum and maximum values are single values that provide bounds

for each entry. The default values are a series of values for the array. Enter the default values for the

array separated by commas only (do not use any spaces).

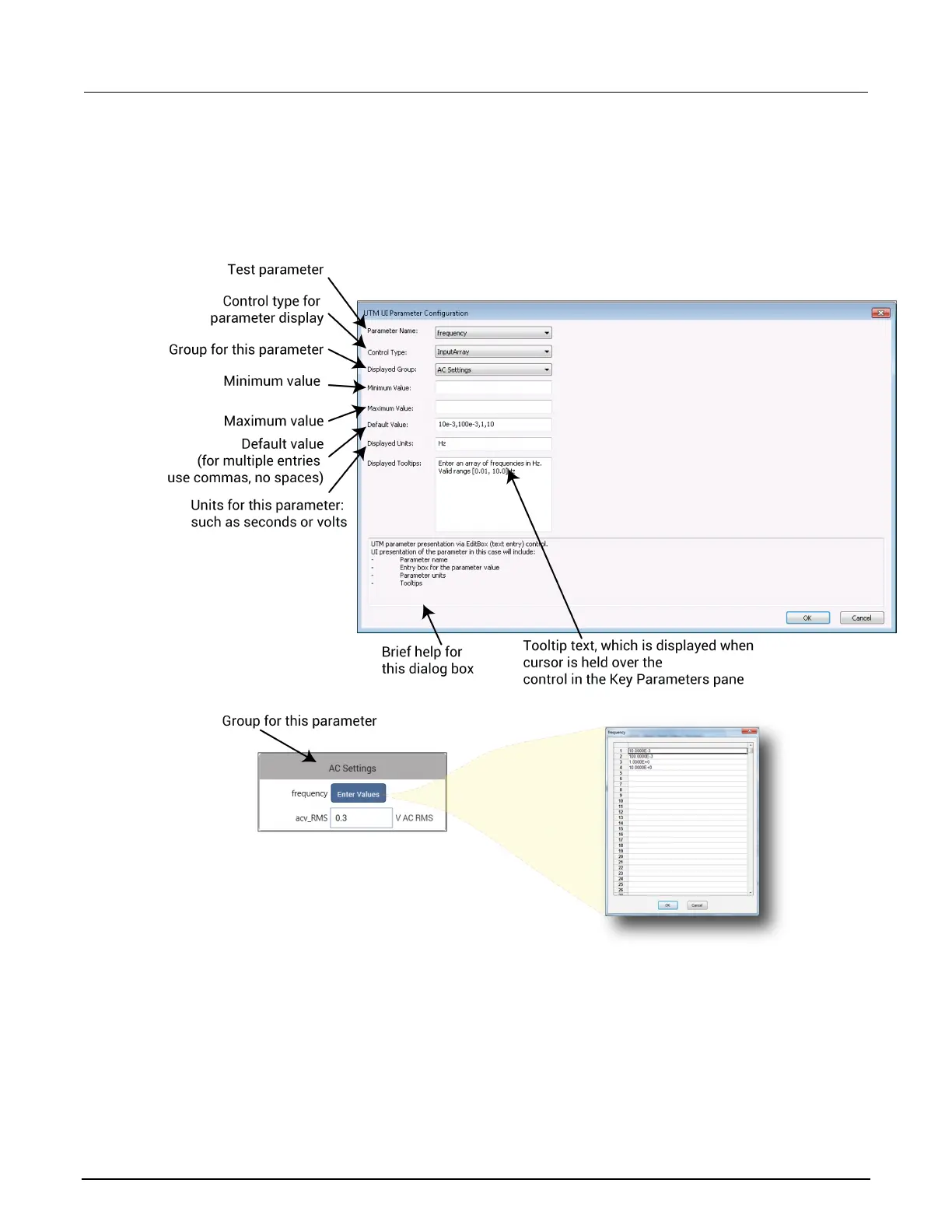

Figure 286: InputArray UTM parameter UI configuration
