6: Clarius Model 4200A-SCS Parameter Analyzer
6-132 4200A-901-01 Rev. C / February 2017

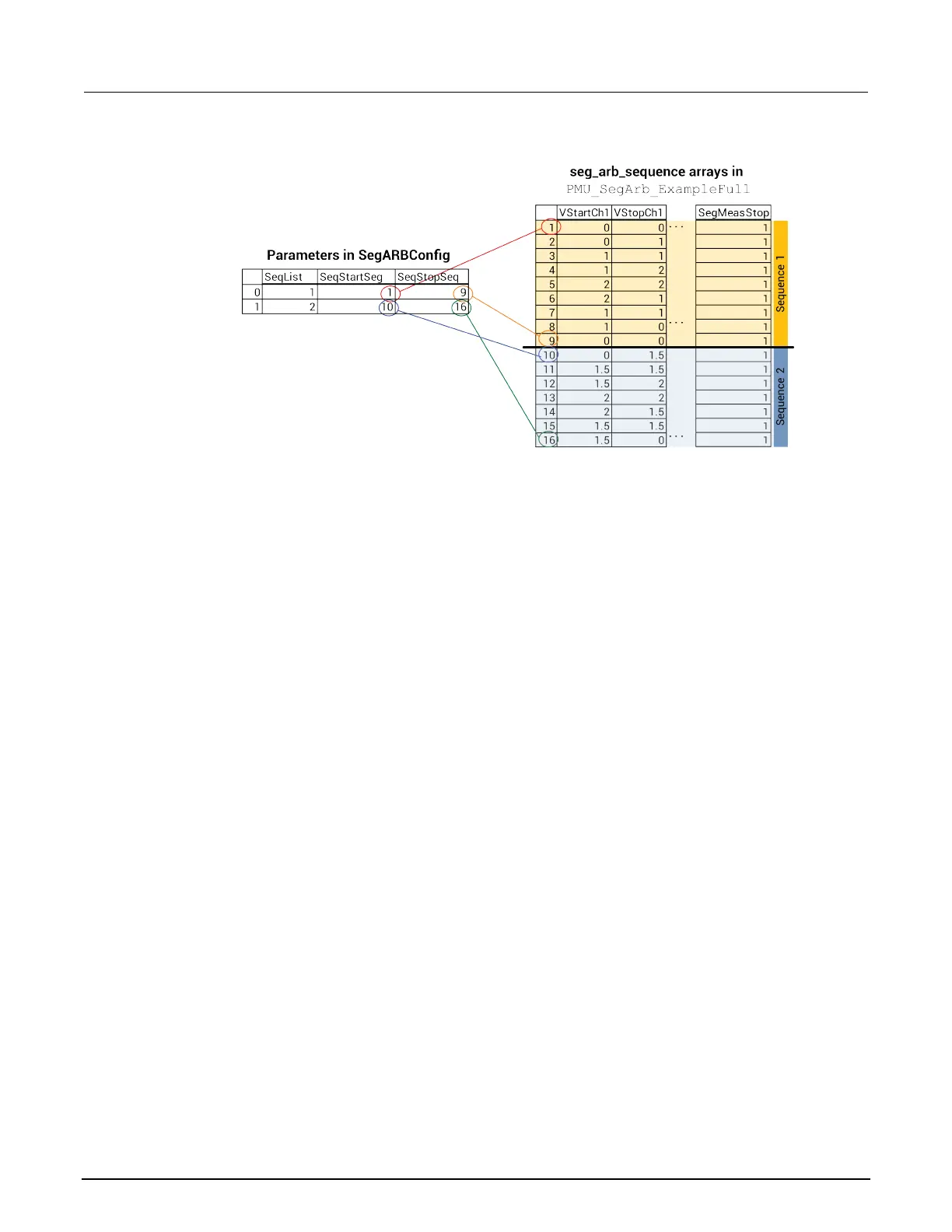

Figure 292: SegARBConfig uses SeqList, SeqStartSeg, and SeqStopSeq to store sequence
In this example for the user module PMU_SegArb_ExampleFull, several parameters are common
across the two channels in the test:
• SegTime (SegTime)
• SegTrig (SegTrigOut)
• SegMeas (MeasEnabled)
• SegMeasType (MeasType)
• SegMeasStart (SegMeasStart)
• SegMeasStop (SegMeasStop)
• SeqList (SeqList)
• SeqStartSeg (SeqStartSeg)
• SeqStopSeg (SeqStopSeg)
Assigning SegARBConfig to a group
As with other Control Types, to appear in the UTM Key Parameters pane, the SegARBConfig must
be assigned to a group. If a user module has more than one Segment Arb
®
waveform channel, place
a SegARBConfig control for each channel in a separate group. Choose which channel is configured
by selecting the specific variable name.
The figures below show the SegARBConfig for user module channel 1 and channel 2. For this
example, selecting the variable named StartVCH1 configures the SegStartV for channel 1, where
selecting the variable named StartVCH2 configures the SegStartV for channel 2.
