Be sure to select appropriate variables for the SegARBConfig parameter assignment for each
channel. Otherwise, unexpected test behavior may occur. Although the seg_arb_sequence
command supports a maximum of 512 sequence definitions for each channel, the SegARBConfig
control only supports 64 unique sequences for each channel. For the definition of the Segment Arb
waveform, the SegARBConfig control does support the full 512 sequences in the sequence list
(SelSeqList) (see seg_arb_waveform (on page 13-128
)).

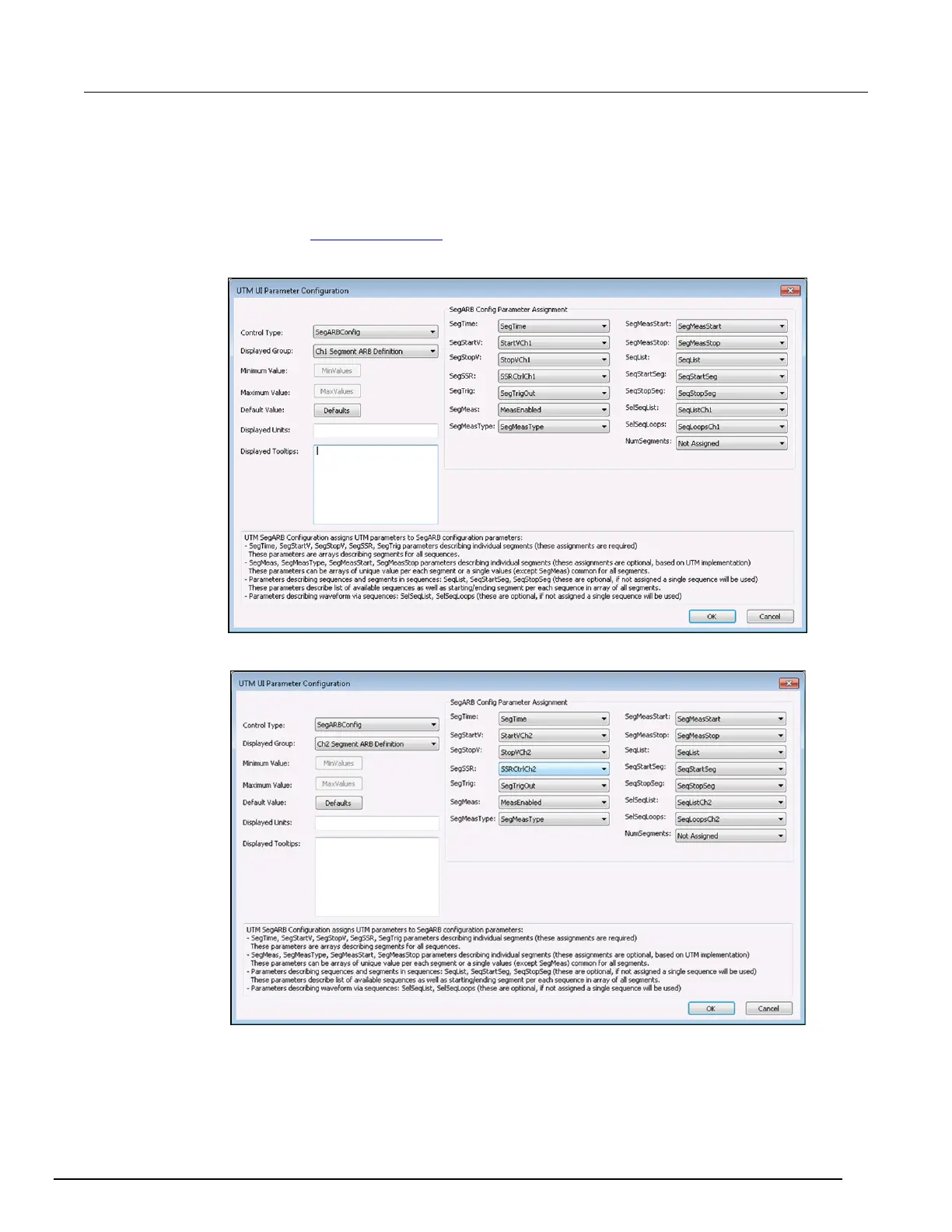

Figure 293: Channel 1 SegARBConfig parameter configuration
Figure 294: Channel 2 SegARBConfig parameter configuration
