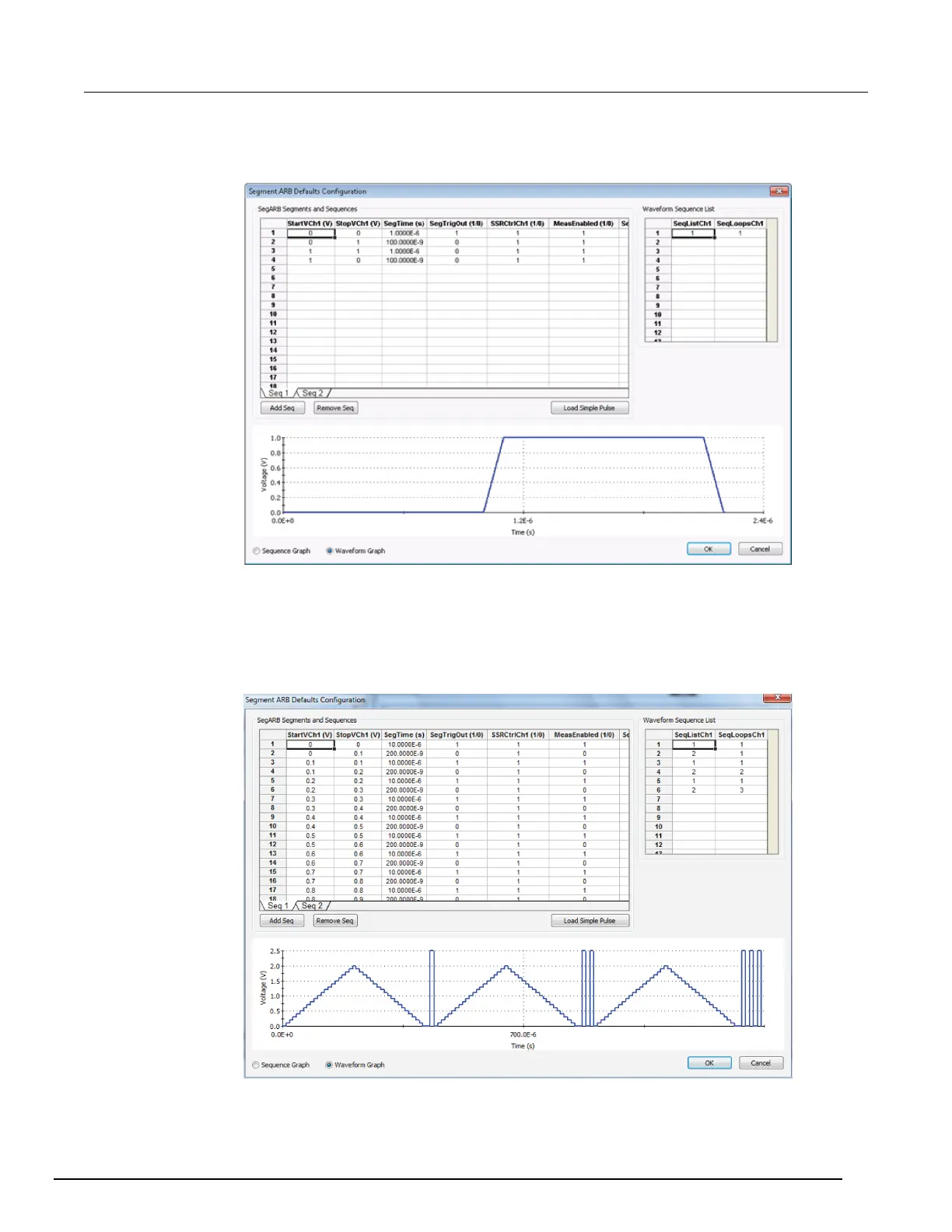

Figure 296: UTM UI Editor Segment Arb Defaults Configuration (after pressing Load Simple

Pulse)

Defaults for this example

The following figures show the defaults for this example user module, PMU_SegArb_ExampleFull.

When creating default waveforms, test them to make sure they properly run and provide the intended

waveforms.

Figure 297: UTM UI Editor Segment Arb Defaults Configuration for channel 1

Default Chapter4
