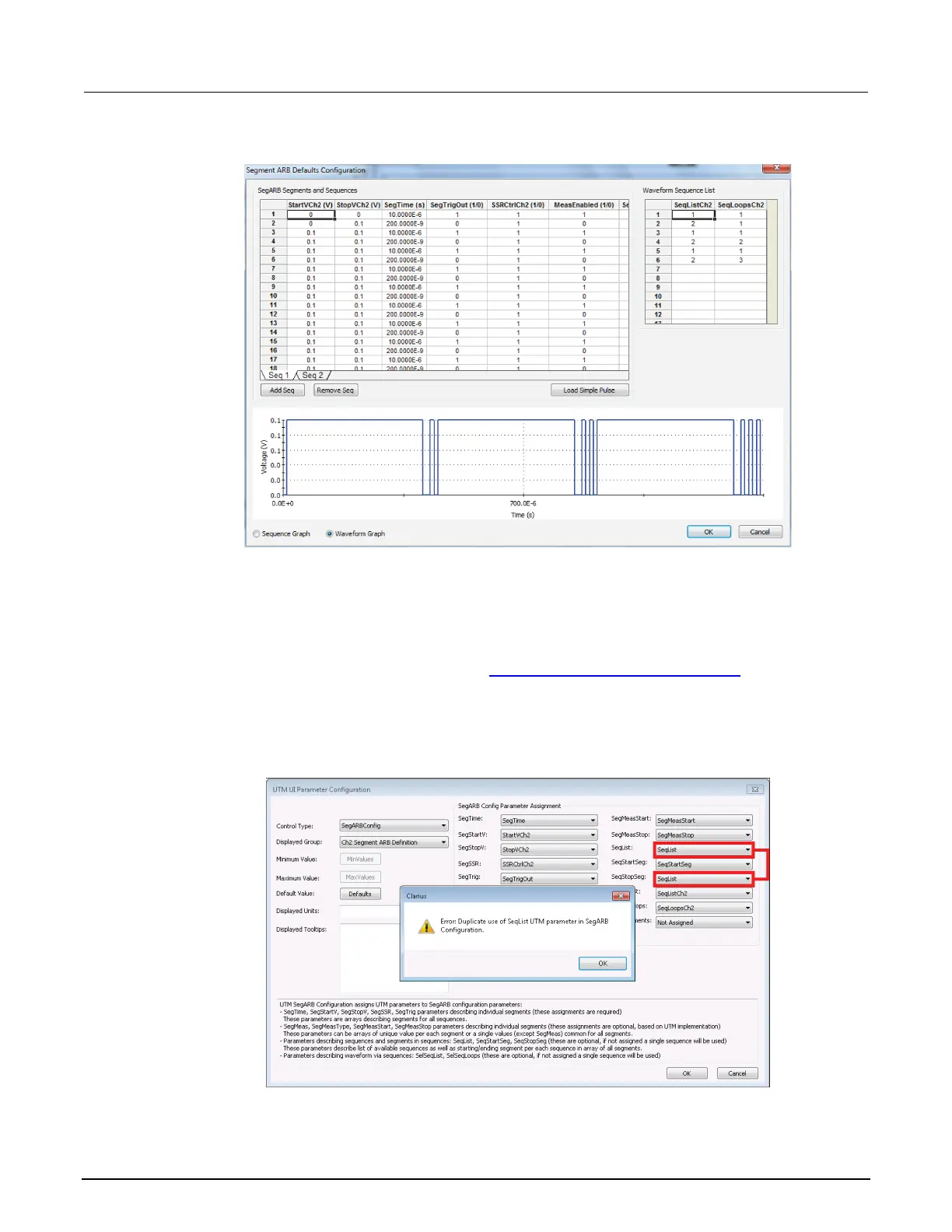

Figure 298: UTM UI Editor Segment Arb Defaults Configuration for channel 2
Error checking
Use care when configuring the SegARBConfig control by assigning the user module parameters to
the SegARBConfig parameter names. Certain error checks are performed to minimize errors (correct
any errors before the configuration can be accepted). Since it is not possible to catch all potential
missed assignments of parameters, the correct configuration relies on the selection of correct
parameters chosen, as shown in the figures in Assigning SegARBConfig to a group (on page 6-132
).
For example, the configuration checks for duplicate parameters specified in a single channel.
The following figure shows an error when using the parameter SeqListCh1 (in red boxes) twice in
the Parameter Assignment.
Figure 299: Error as the result of duplicate use of parameter
