6: Clarius Model 4200A-SCS Parameter Analyzer

Reference Manual

6-150 4200A-901-01 Rev. C / February 2017

Connections for matrix card

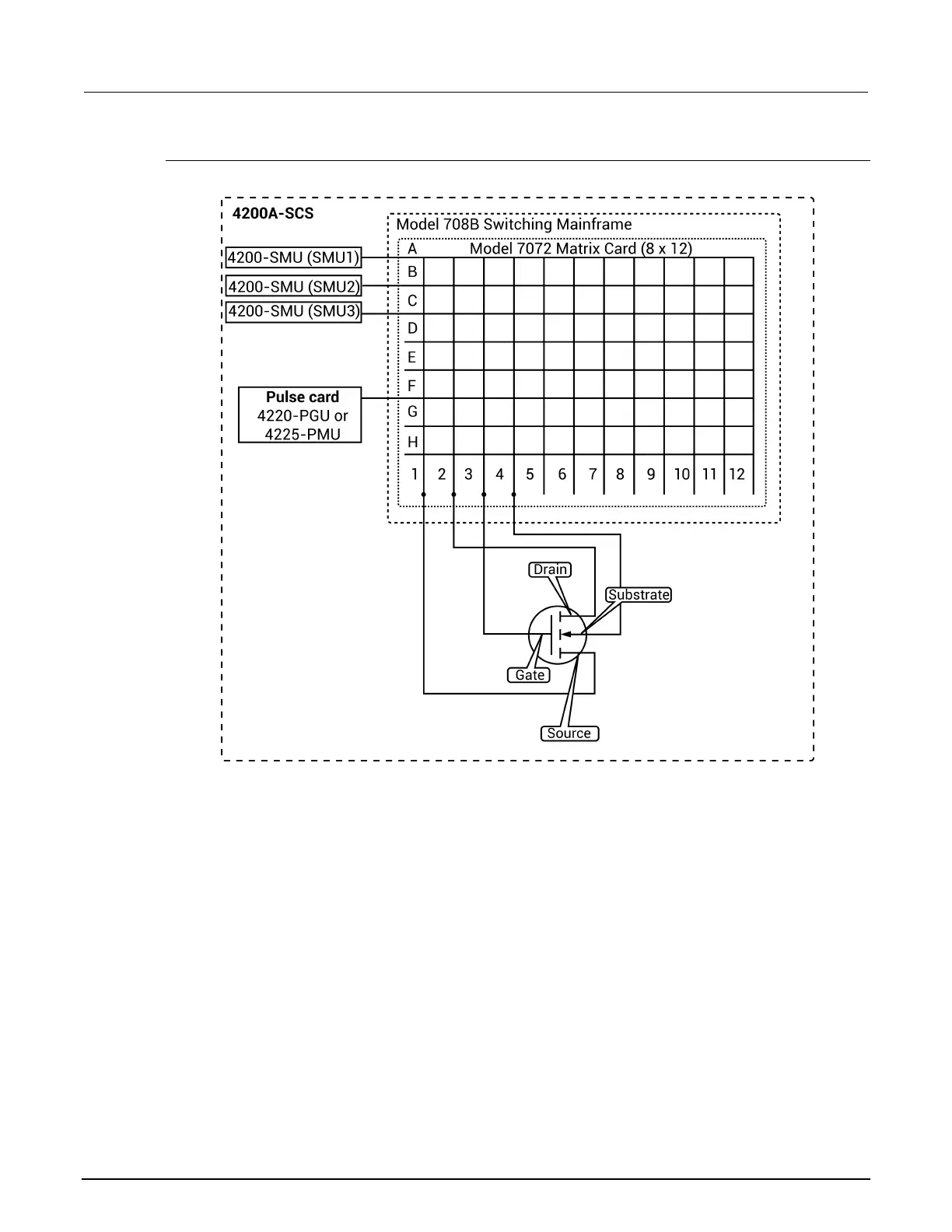

Figure 309: AC Pulse stress-measure — hardware matrix card simplified schematic
