Model 4200A

-SCS Parameter Analyzer Reference Manual Section 6:

Clarius

4200A-901-01 Rev. C / February 2017 6-151

Connections for pulse card to device under test

Connect the pulse generator to the DUT during stress as shown in the following figures.

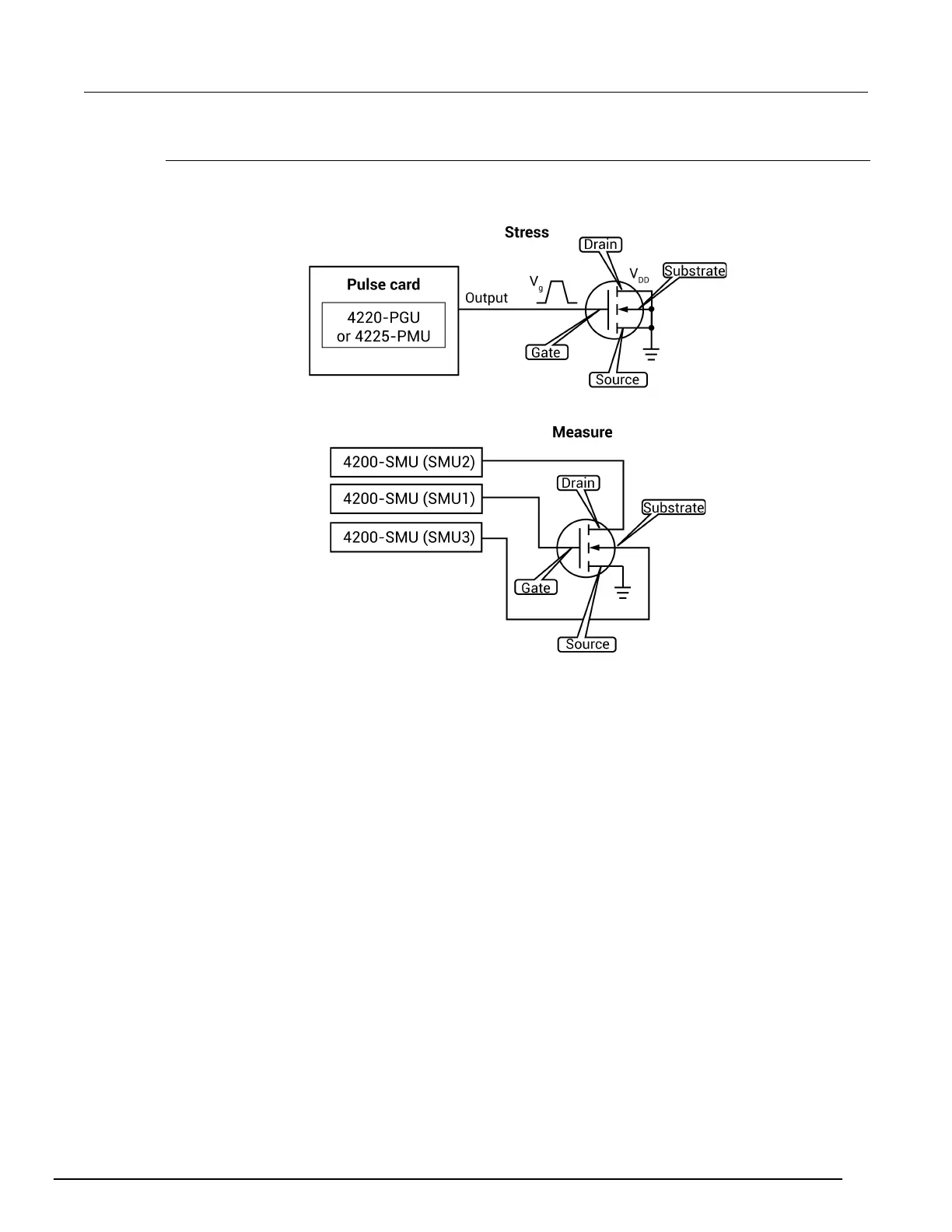

Figure 310: AC pulse stress-measure — hardware setup block diagram for stress

Figure 311: AC Pulse stress-measure — hardware setup block diagram for measure
