6: Clarius Model 4200A-SCS Parameter Analyzer

Reference Manual

6-164 4200A-901-01 Rev. C / February 2017

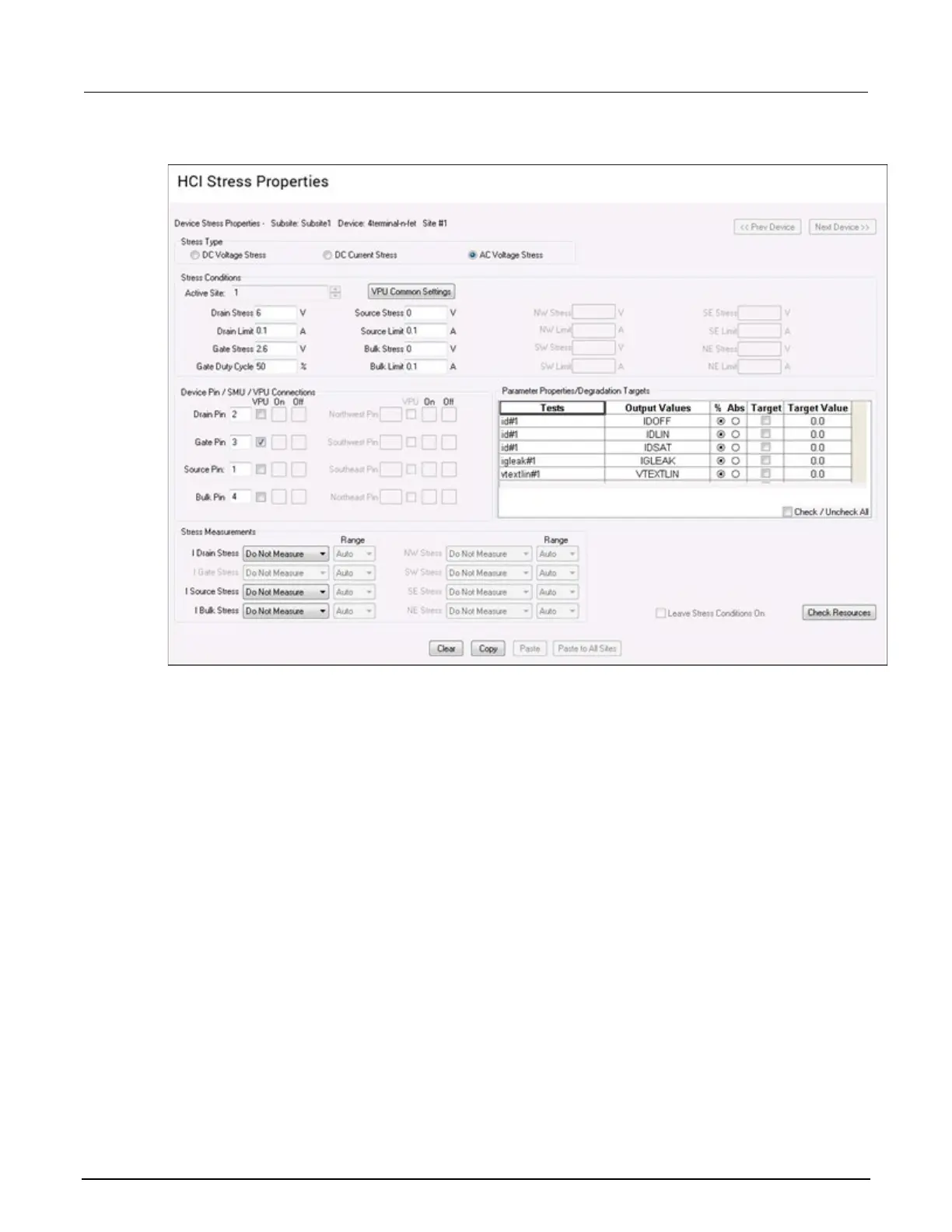

Figure 326: Subsite Stress Properties pane

Stress Conditions

The options you may see in the Stress Conditions area include the following. The options that are

available depend on the device that is selected.

Enter the voltage or current stress values for each terminal.

Active Site: The wafer site number.

Terminal Stress: Enter the voltage or current stress values for each terminal.

Terminal Limit: Enter the voltage or current limit values for each terminal.
