Keithley 4200A-SCS Reference Manual

Model 4200A
-SCS Parameter Analyzer Reference Manual Section 8:
Keithley User Library Tool (KULT)
4200A-901-01 Rev. C / February 2017 8-25

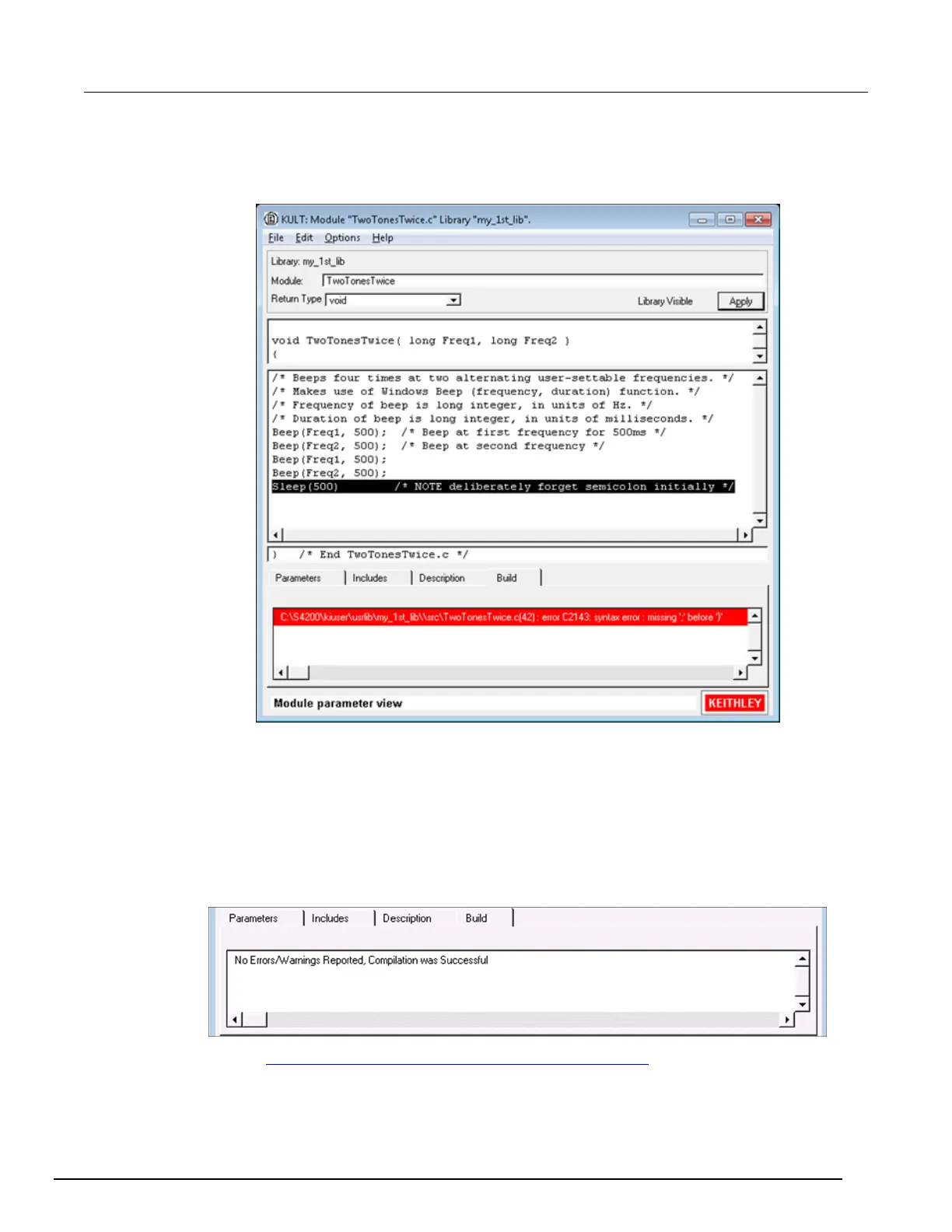

To find code errors for the TwoTonesTwice user module:
1. Click the error message. The last line of code is highlighted, as shown below.
Figure 436: Find a code error
2. Add the missing semicolon at the end of the code [Sleep(500);], and delete the comment
about the missing semicolon.
3. Select File > Save Module.
4. Compile the user module again.
 The KULT Compile message box should now display no error messages and disappears
automatically.
 The Build tab area should display the successful compilation message shown below.
Figure 437: Successful compilation message displayed in Build tab
Continue with Building the user library to include the new user module (on page 8-26).
