Section

8: Keithley User Library Tool (KULT) Model 4200A-SCS Parameter Analyzer

Reference Manual

8-42 4200A-901-01 Rev. C / February 2017

Open the KI42xxulib user library

1. From the File menu, select Open Library.

2. From the Open Library dialog box, select KI42xxulib.

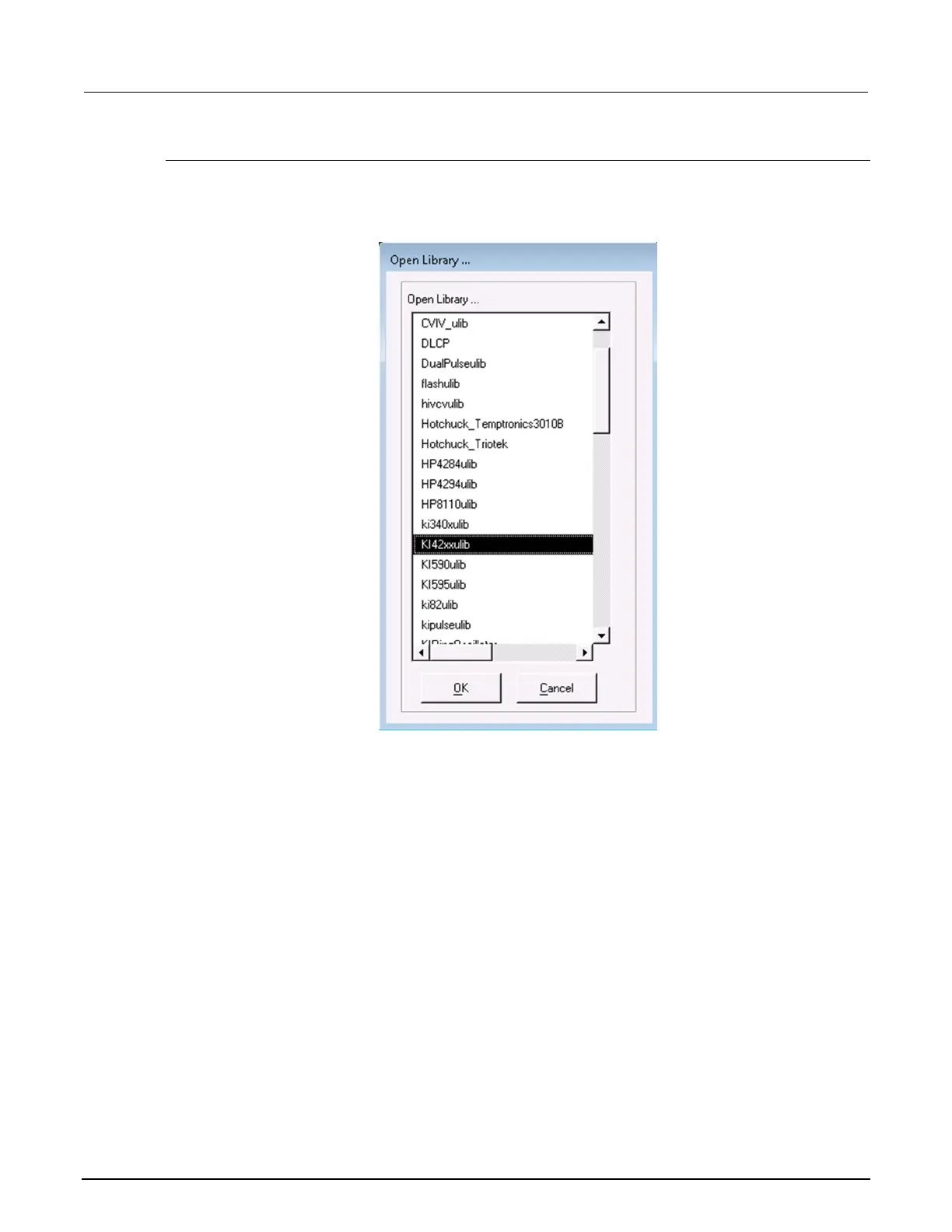

Figure 448: KULT Open Library dialog box

3. Click OK.
