Model 4200A

-SCS Parameter Analyzer Reference Manual Section 8:

Keithley User Library Tool (KULT)

4200A-901-01 Rev. C / February 2017 8-43

Open the Rdson42XX user module

1. From the File menu, select Open Module.

2. From the Open Module window, select Rdson42XX.c, as shown in the following figure.

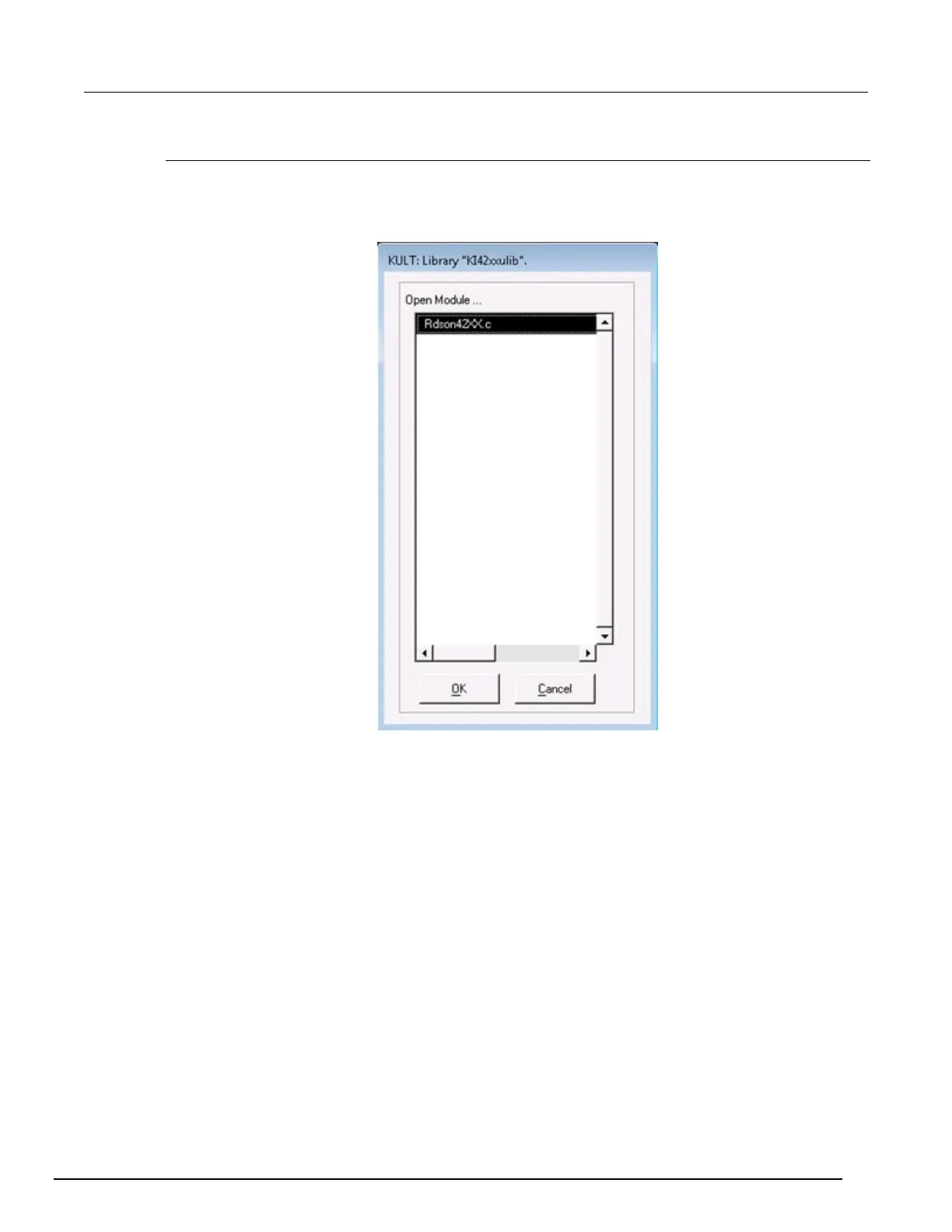

Figure 449: KULT Open Module dialog box

3. Click OK. The Rdson42XX module opens.
