Keithley 4200A-SCS Reference Manual

Section
8: Keithley User Library Tool (KULT) Model 4200A-SCS Parameter Analyzer
Reference Manual
8-44 4200A-901-01 Rev. C / February 2017
Copy Rdson42XX to RdsonAvg
You create the new module by copying the Rdson42XX module to a module named RdsonAvg and
then making the appropriate changes to the test module.
When naming a user module, conform to case-sensitive C programming language naming
conventions. Do not duplicate names of existing user modules or user libraries.
To create the new module:
1. From the File menu, select Copy Module.
2. Select the library for the module. From the Copy Module dialog box, select KI42xxulib.

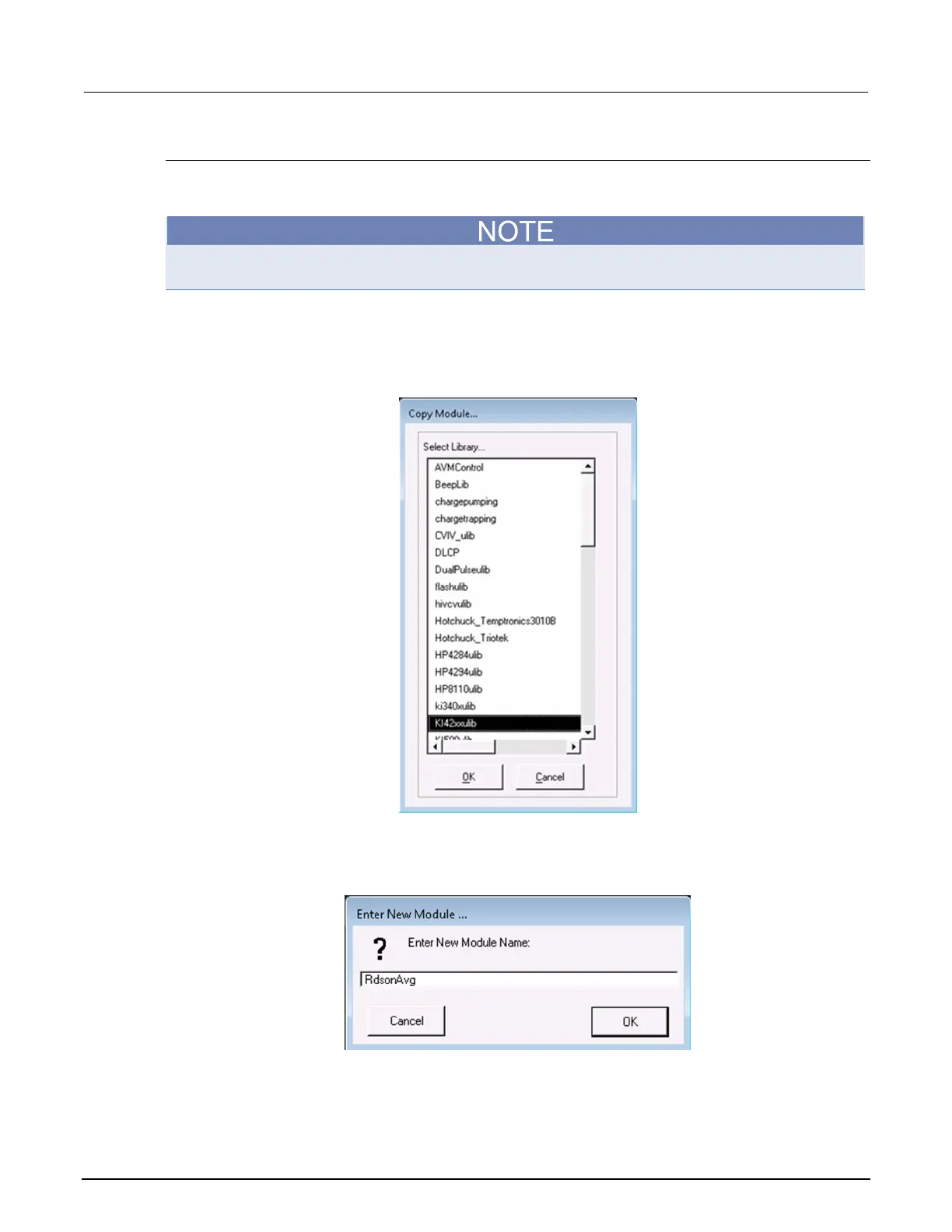

Figure 450: Copy Module dialog box
3. Click OK.
4. In the Enter New Module dialog box, type in RdsonAvg.
Figure 451: Enter New Module Name dialog box
5. Click OK. A reminder that the library using the new module needs to be built is displayed.
6. Click OK.
