Keithley 4200A-SCS Reference Manual

Section
8: Keithley User Library Tool (KULT) Model 4200A-SCS Parameter Analyzer
Reference Manual
8-48 4200A-901-01 Rev. C / February 2017
Add a new UTM to the ivswitch project
To add rdsonAvg to the ivswitch project:
1. Choose Select.
2. Select Projects.
3. In the Search box, enter ivswitch and select Search. The Library displays the I-V Switch Project
(ivswitch).
4. Select Create. The ivswitch project replaces the previous project in the project tree.
5. Select the Tests tab.
6. For the Custom Test, select Choose a test from the pre-programmed library (UTM).
7. Drag Custom Test to the project tree. The test has a red triangle next to it to indicate that it is not
configured.
8. Select Rename.
9. Enter rdsonAvg and press Enter.
10. In the project tree, drag rdsonAvg to the 4terminal-n-fet device, after the rdson test.
11. Choose Configure.
12. In the Test Settings pane, from the User Libraries list, select KI42xxulib.
13. From the User Modules list, select Rdson42XX.
14. Select Save.

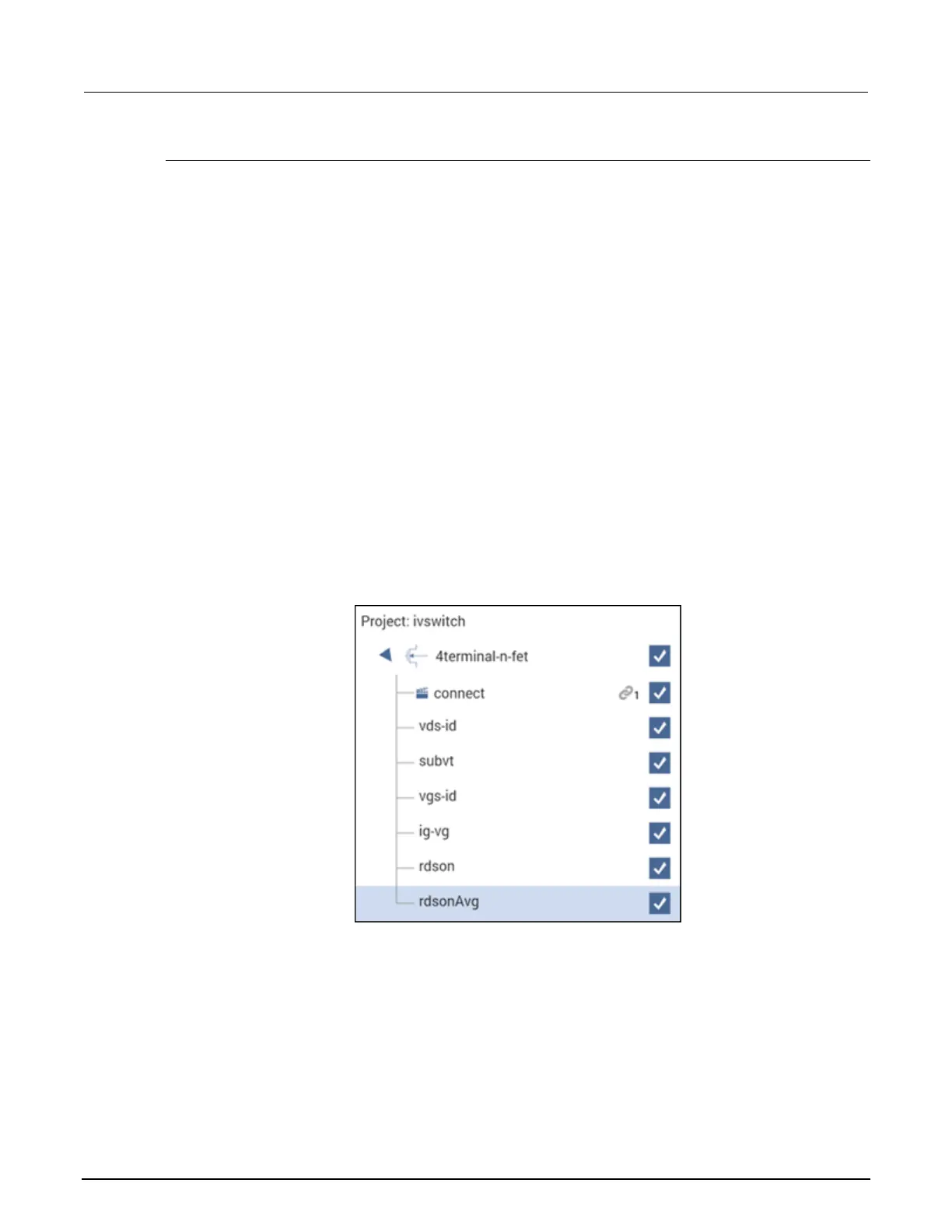

The project tree for the ivswitch project with rdsonAvg added is shown in the following figure.
Figure 454: Project tree with rdsonAvg added to 4terminal-n-fet device
