2. From the bottom of the drive, locate the access hole (1 in Figure 8-143).
3. Insert a 2.5 mm offset hex wrench through the bottom cover access hole and
into the reel motor axle. Begin spooling the tape back into the cartridge by
turning the hex wrench clockwise.
4. Continue spooling into the cartridge until the tape is taut and remains within
the flanges of the tape guiding rollers. Ensure that you do not stretch the tape.
5. Locate the threader motor worm gear (4 in Figure 8-144 on page 8-134) on
the rear of the drive. You can either:
a. Use your finger to rotate the threader motor worm gear and slowly rotate
the threader mechanism gear (6 in Figure 8-144 on page 8-134)
clockwise;
--OR--
b. Use a #1 flathead screwdriver to turn the threader worm gear (9 in
Figure 8-144 on page 8-134) clockwise.
This rotates the threader motor worm gear (4 in Figure 8-144 on page 8-134)
clockwise, drawing the LBA into the cartridge.
a82ru008
1

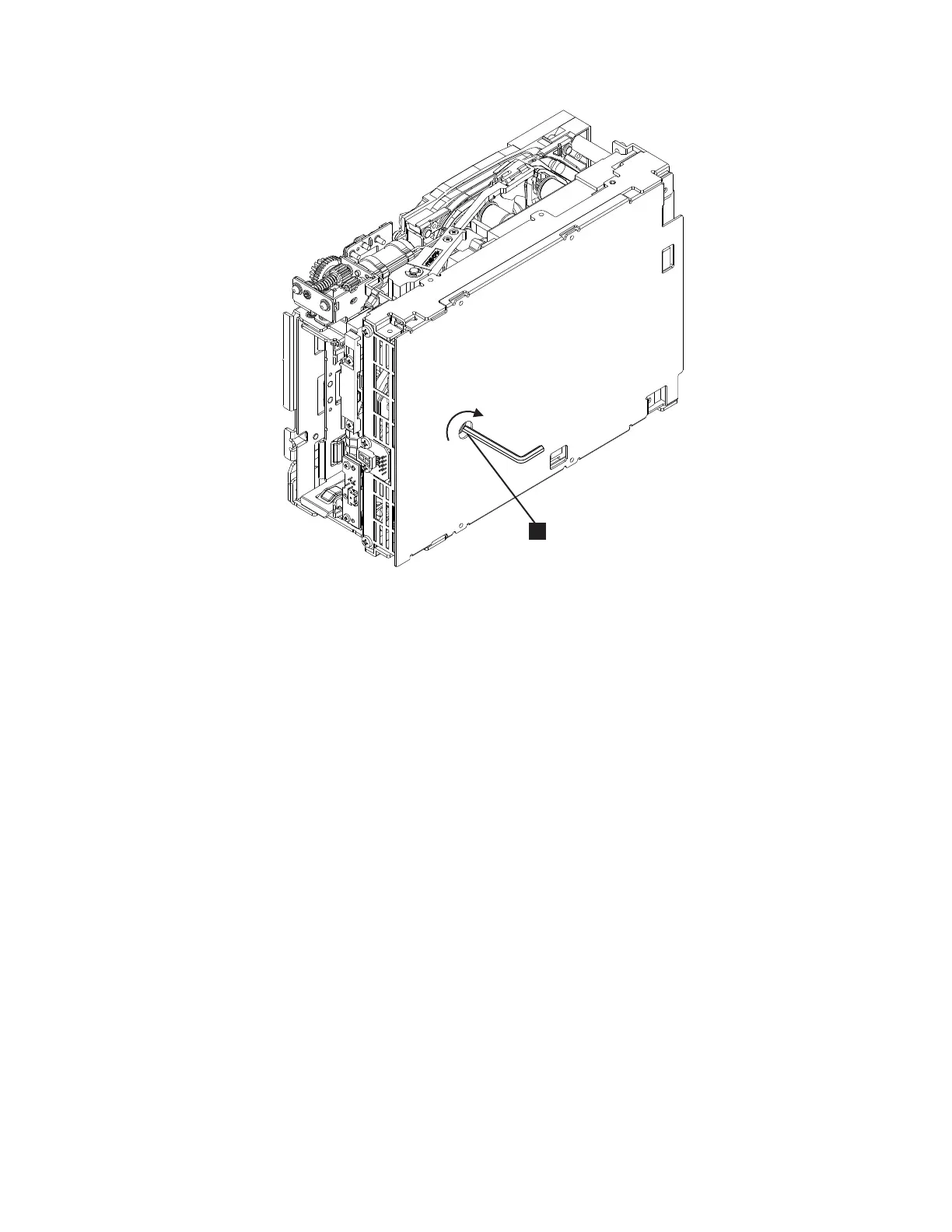

Figure 8-143. Using hex wrench to rewind tape into cartridge
Chapter 8. Add, Check, Adjust, Remove, and Replace Procedures 8-133

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
