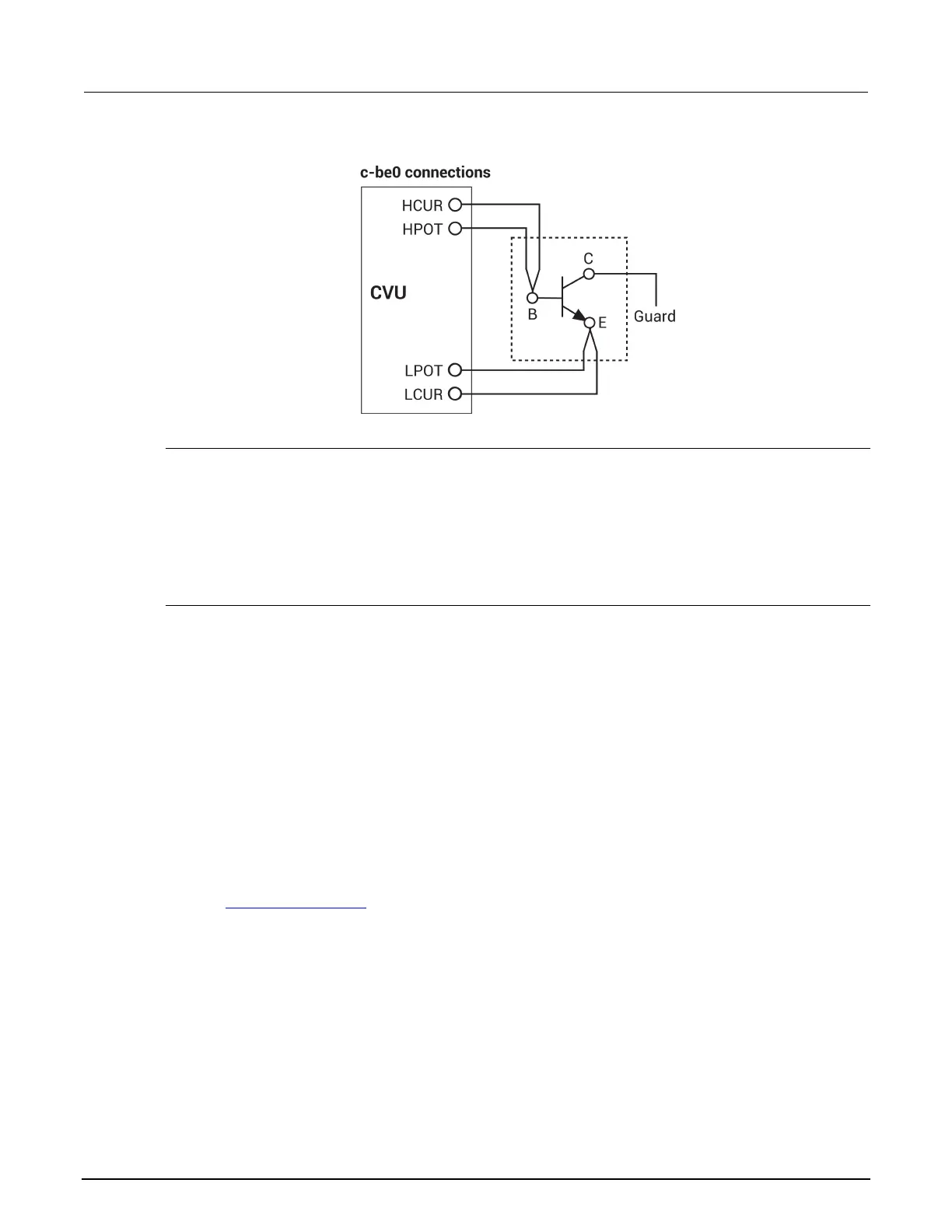

Figure 122: Basic configurations for BJT c-be0 test
Formulas and constants
This project uses two formulas with no constants:
• AVG_CAP: Calculates the average capacitance in farads (F). The formula is:
AVG_CAP = AVG(CP_AB)
• STD_DEV: Calculates the standard deviation of the capacitance measurements. The formula is:
STD_DEV = STDEV(CP_AB)
c-cb0 test
This test measures the capacitance as a function of time between the collector and base terminals of
a BJT at 0 V. The results (C versus t) are then plotted on a graph. This test also calculates the
average capacitance and standard deviation.
Analyze sheet
Test data is displayed in the Analyze sheet:
• Time: Measured parallel capacitance.
• Cp_CB: Measured parallel capacitance.
• Gp_CB: Measure conductance.
• DCV_CB: Forced DC bias voltage.
• F_CB: Forced test frequency.
• CVU1S: Status code for each measurement. Rows highlighted in blue indicate a fault. For details,
see Measurement status (on page 6-191
).
• AVG_CAP: Calculated; the average capacitance in farads (F).
• STD_DEV: Calculated; the standard deviation of the capacitance measurements.
