-SCS Parameter Analyzer Reference Manual Section 6:
4200A-901-01 Rev. C / February 2017 6-191

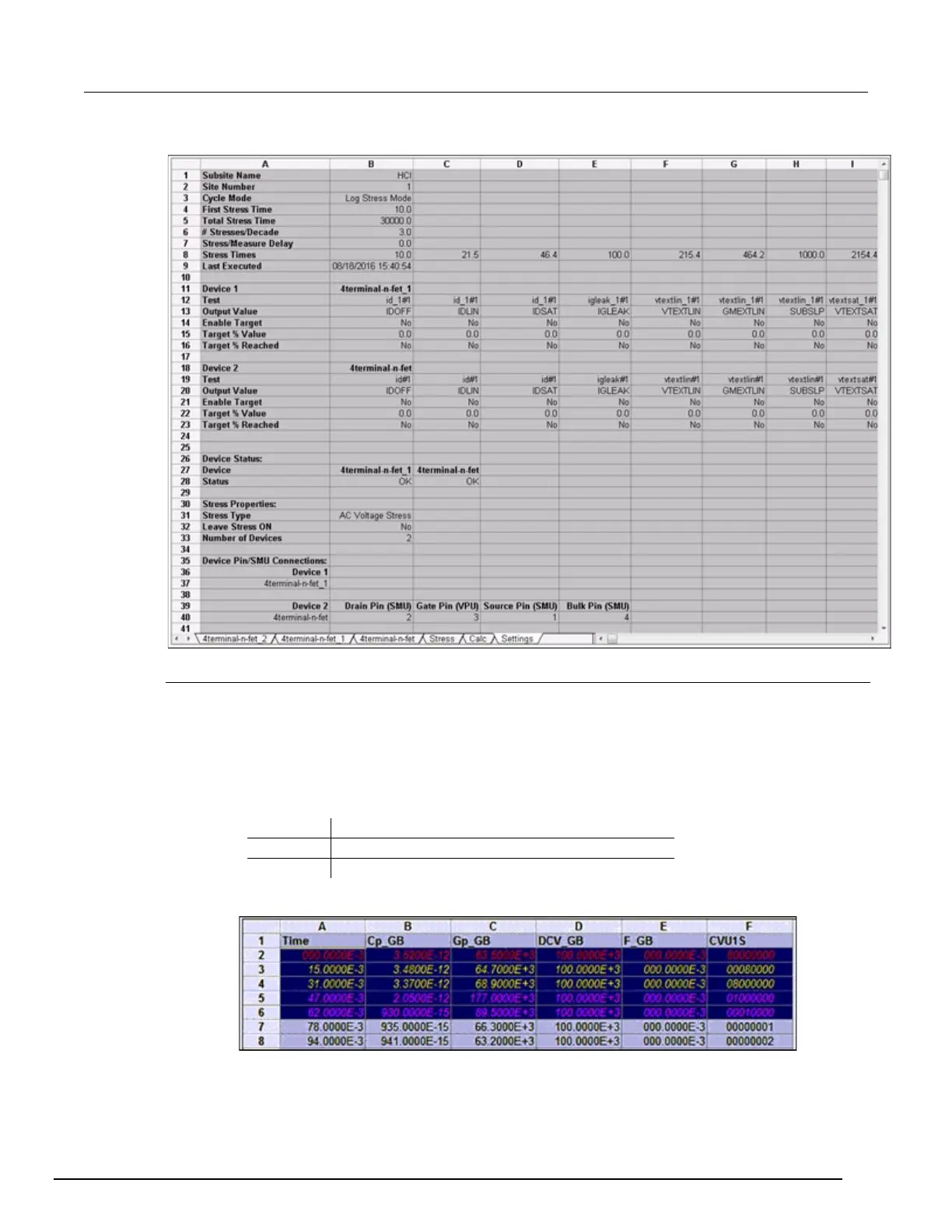

Figure 352: Subsite Analyze Settings sheet for Stress/Measure mode
Measurement status
Many tests provide status information for the measurements in the Analyze pane of Clarius. For the
4210-CVU, the data column for the 32-bit status codes is labeled CVU1S. CVU status code indicates
the I measure range for each impedance measurement and flags any errors.
When a measurement error occurs, the entire row of data related to the measurement is highlighted
in blue, as shown in the next figure). The data values in the flagged data row are color-coded to
identify the fault type as follows:
Auto Balance Bridge (ABB) not locked
Figure 353: Status tab showing faults (example)
Placing the cursor on a flagged CVU1S cell opens a window that summarizes the error.
