Subsite Settings sheet
The Settings sheet displays information about the subsite cycling setup. It also lists the output values
for each device and test. To display the Settings sheet, select the Settings tab on the subsite
Analyze sheet.
An example of the Settings sheet for the Cycle mode is shown in the figure below.

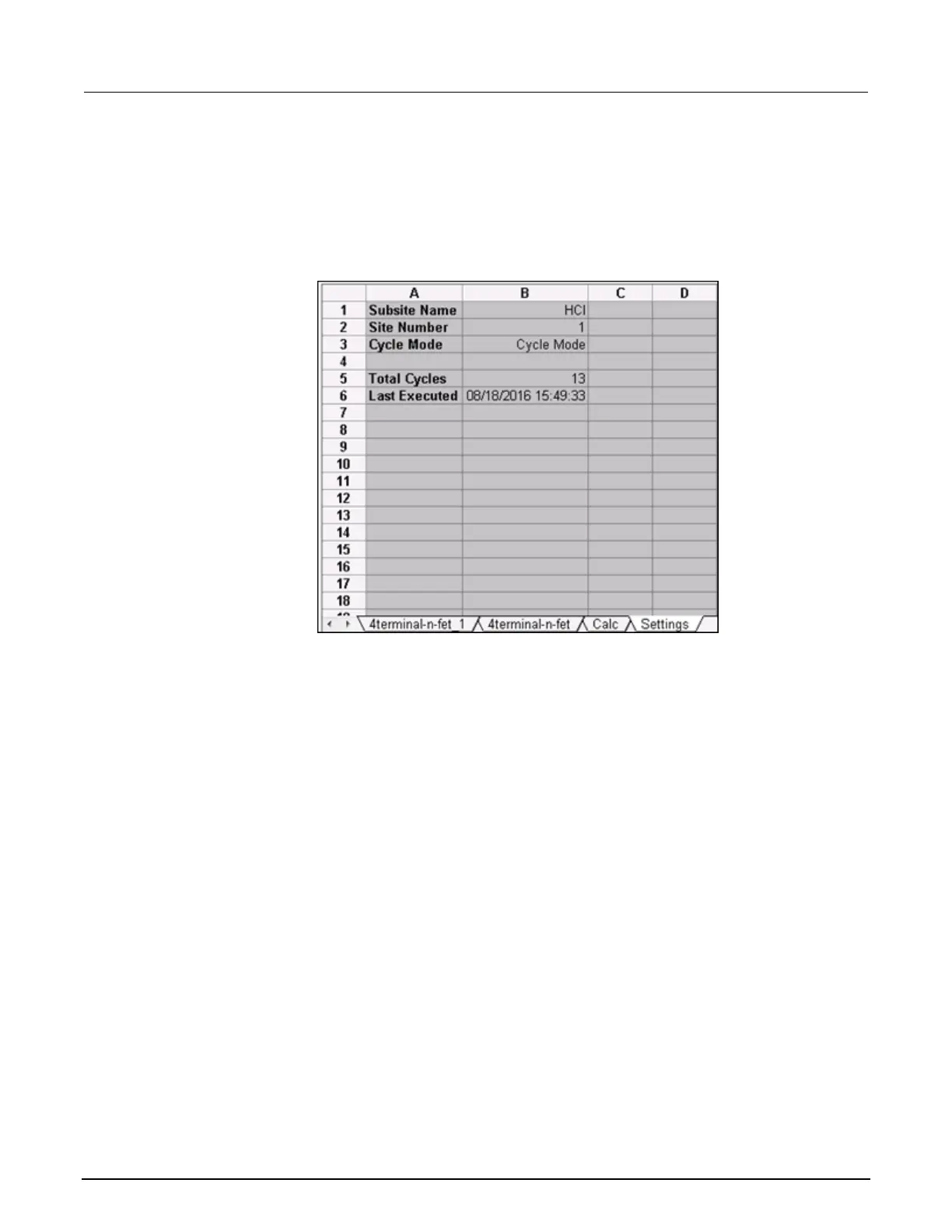

Figure 351: Analyze Subsite Settings sheet for Cycle mode
An example of the Settings sheet for the Stress/Measure mode is shown in the following figure. It is
similar to the Settings sheet for the Cycle mode, but it includes information on targets. For each
enabled target, the target value is listed. After subsite cycling, it also indicates if targets have been
reached.
The top rows show the subsite cycling setup.
The next set of rows show the output values and target information. It lists the target percentage
values that indicate if the target was reached.
