Define the user interface for a user test module (UTM)
After you create a user module, you can use it as a user test module (UTM) in a 4200A-SCS project.
When you create a user interface for a user test module (UTM), you can set up the Key Parameters
Configure pane to:
• Group parameters logically
• Add an image of the test to illustrate the overall test capability
When creating the user interface definition for Key Parameters, display only the most important or the
most commonly used parameters.
If you do not define the user interface, Clarius creates one automatically. The parameters are placed
in groups around a default image of the device under test (DUT) graphic.
The following topics describe how to customize the Key Parameters user interface (UI) definition for a
UTM. The following graphic is an example view of a UTM that is displayed in the Configure pane.

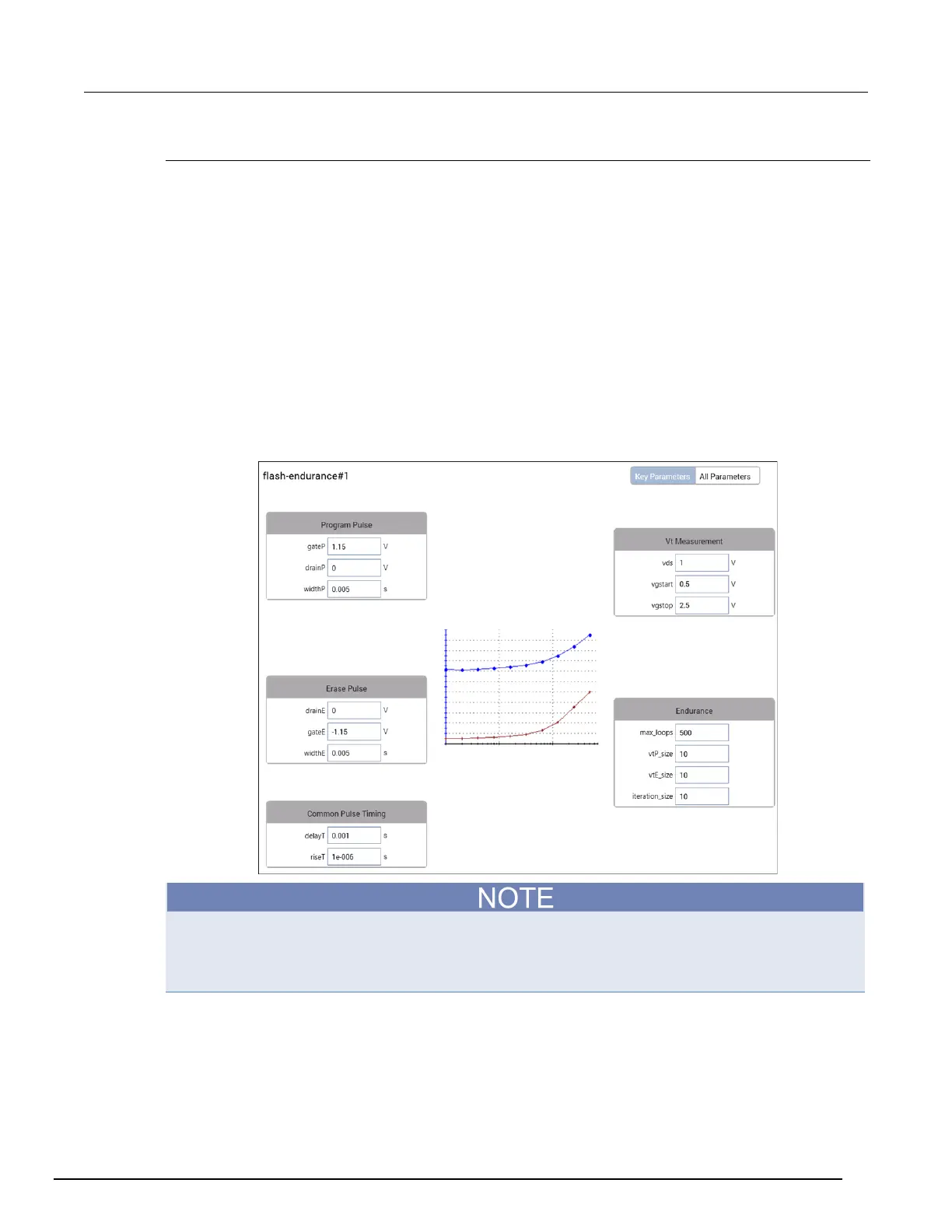

Figure 273: Key Parameters view of Configure pane
If you change a UTM parameter name using KULT after the defining the user interface, make sure
you update the UI definition. This makes sure the new parameter name has a group and is
displayed. If you do not update it, the new parameter name will not have a group and will not be
displayed.
