Run individual devices
You can run the tests for a single device in the project tree.
When you run the tests for a single device, the tests are run in the order in which they appear in the
project tree. Only the tests that have checkboxes selected are run. In the following example, all the
tests for the diode device are run except for vrd.
To abort a test, select Stop. All test and action execution stops immediately.
The following example uses the Demo Project to demonstrate how to run tests for a device.
To run tests for a device:
1. Open the Demo Project. Refer to Open a project (on page 6-16).
2. Make sure the check boxes are selected for all items under the diode device except for vrd, as
shown in the figure below.
3. Highlight the device name, diode, as shown in the figure below.

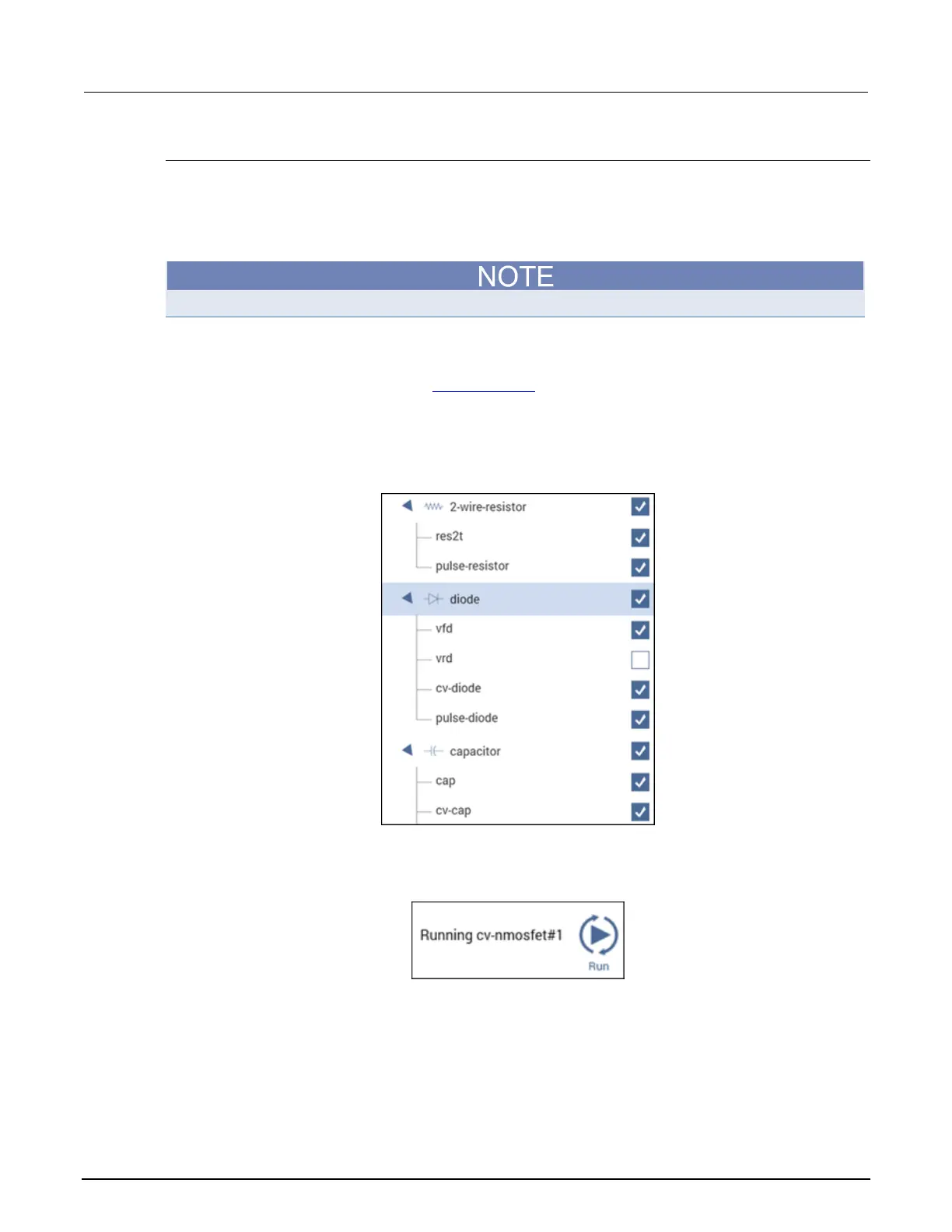

Figure 338: Run tests for a single device
4. Select Run. The Run icon changes as shown below. The active test is listed to the left of Run.
The Stop icon changes to red.
Figure 339: Run icon while a test is running
When the test completes, a beep sounds and the run arrows around the Run icon are no longer
displayed.
