MIPS R4000 Microprocessor User's Manual A-105
CPU Instruction Set Details

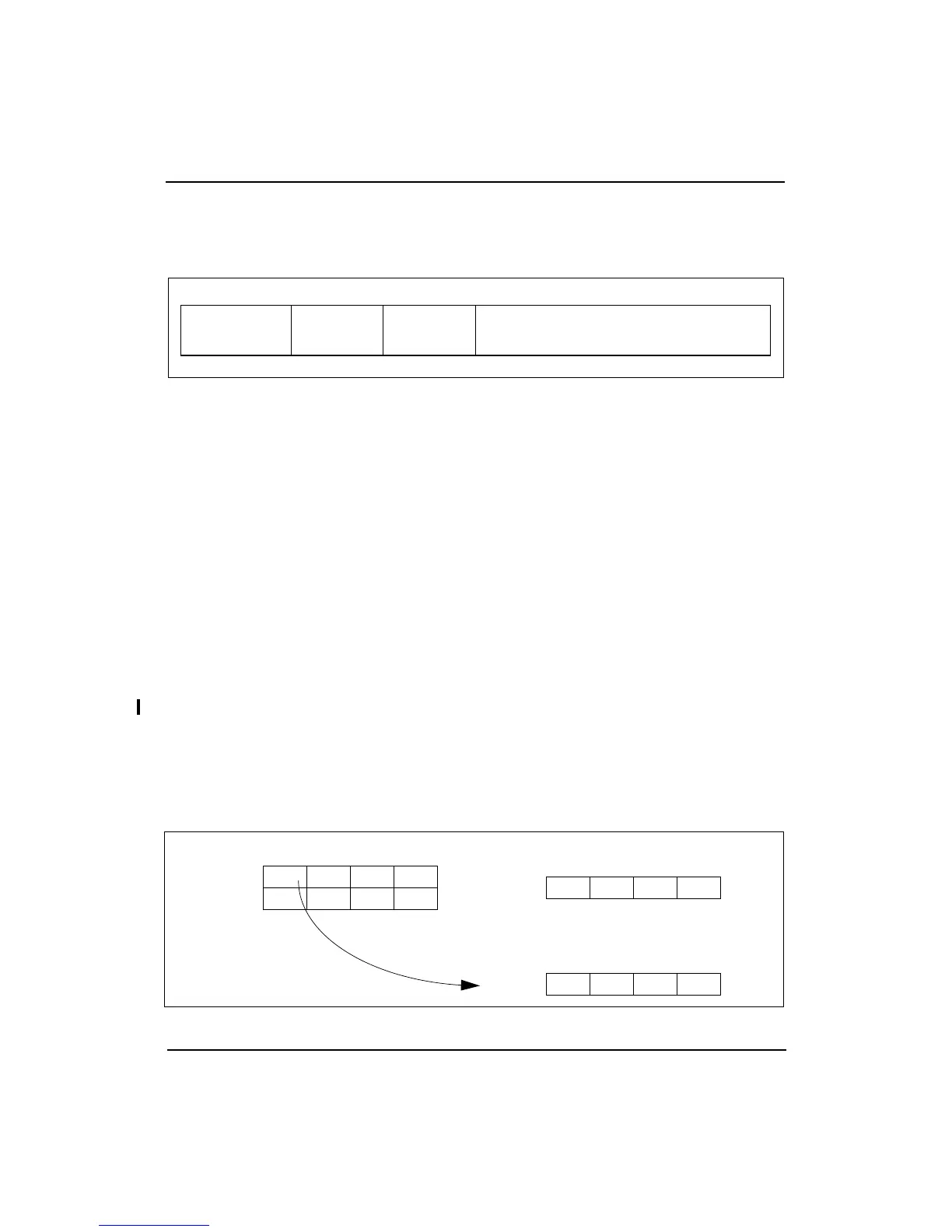

Format:
LWR rt, offset(base)
Description:
This instruction can be used in combination with the LWL instruction to
load a register with four consecutive bytes from memory, when the bytes
cross a word boundary. LWR loads the right portion of the register with
the appropriate part of the low-order word; LWL loads the left portion of
the register with the appropriate part of the high-order word.
The LWR instruction adds its sign-extended 16-bit offset to the contents of
general register base to form a virtual address which can specify an
arbitrary byte. It reads bytes only from the word in memory which
contains the specified starting byte. From one to four bytes will be loaded,
depending on the starting byte specified. In 64-bit mode, if bit 31 of the
destination register is loaded, then the loaded word is sign-extended.
Conceptually, it starts at the specified byte in memory and loads that byte
into the low-order (right-most) byte of the register; then it loads bytes from
memory into the register until it reaches the high-order byte of the word
in memory. The most significant (left-most) byte(s) of the register will not
be changed.
LWR
Load Word Right
31 2526 2021 1516 0
LWR
base rt
offset
655 16
1 0 0 1 1 0
LWR
address 0
address 4
0123
4567
ABCD
register
LWR $24,4($0)
$24
memory
(big-endian)
before
after
ABC4
