TR250 Electronics Bay Access
The Electronics Bay contains the Control PC and Power Supplies.
The Electronics Bay must be opened to service the following:
X Display/Touchscreen assembly
X Fingerprint Scanner
X NFC Scanner (Register Till Scanner)
X Speakers
X Rear connections

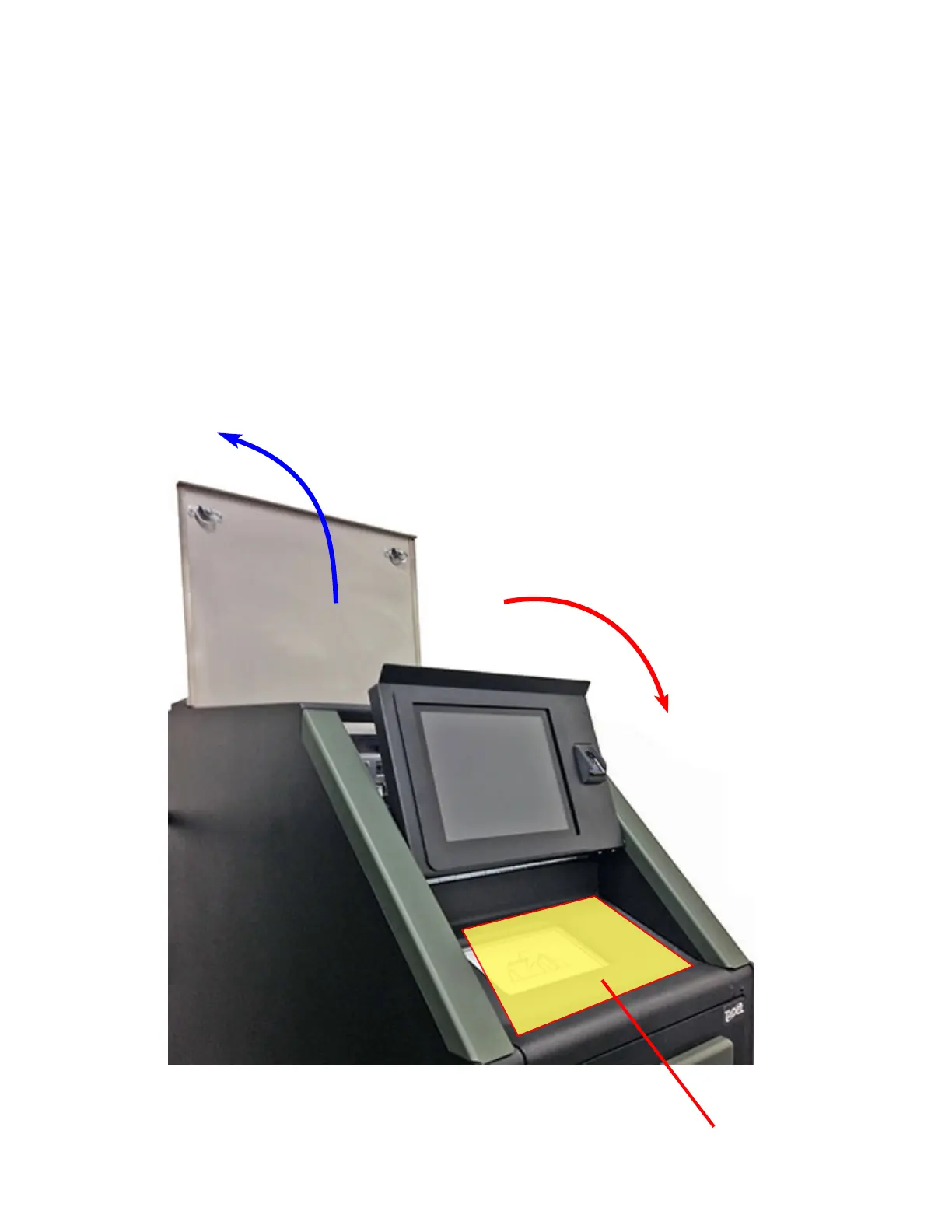

Raise the Electronics Bay Lid
Pivot the Display/Touchscreen assembly
forward to the service position
Place a protective pad here when servicing
10
