Bill Validator Removal
Removal (the Bill Validator may require removal to access jam areas)

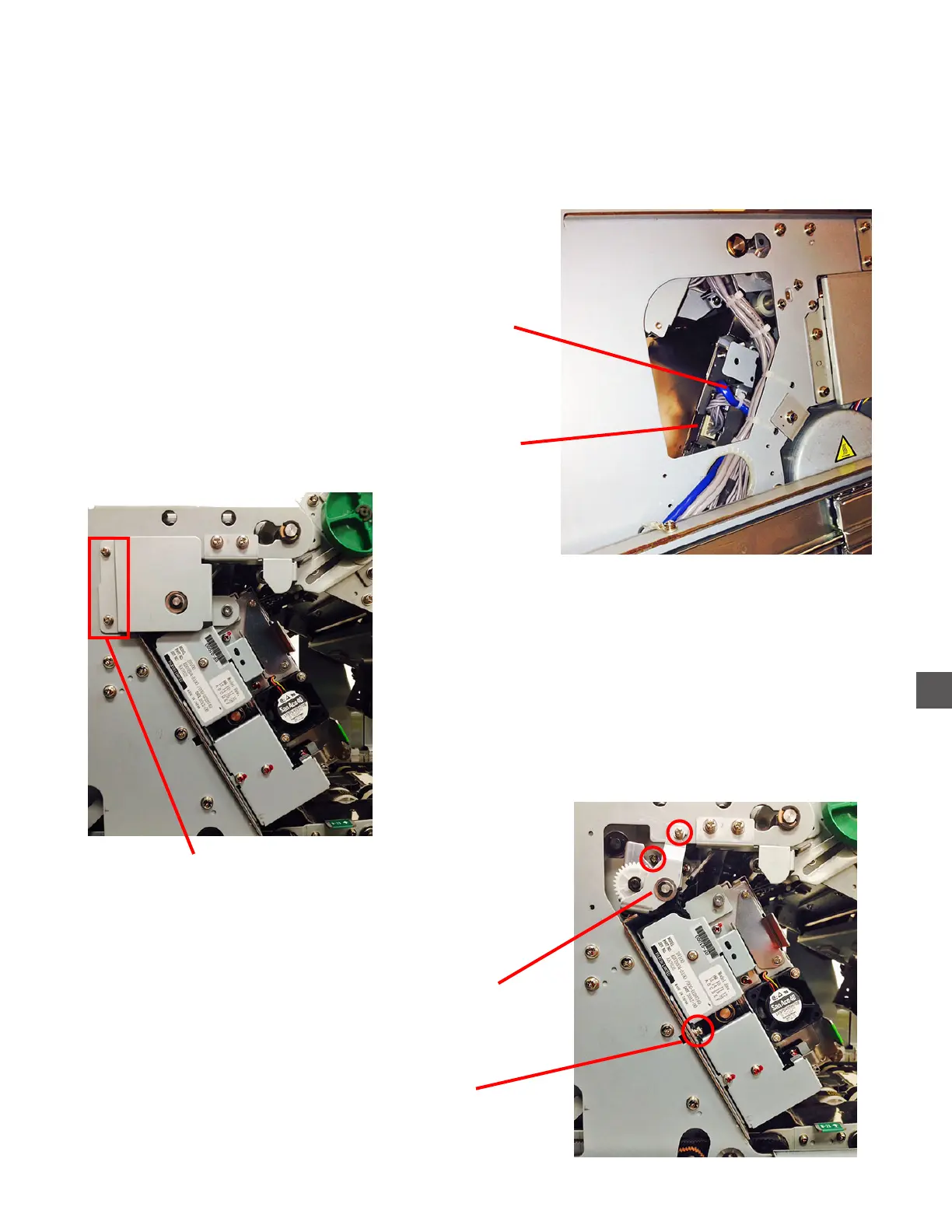

1) Disconnect the Power and Data Cable from the rear of the Bill Validator (“hot” side ~ right side
facing unit).
Bill Validator Data
Bill Validator power
Right Side of Note Recycler
2) Remove the (2) screws and retaining coverplate.
Left Side of Note Recycler
3) Loosen the (2) gear retainer screws and
rotate the gear bracket (counter clockwise)
4) Remove the retaining screw and carefully
withdraw the Bill Validator from the left side.
