Bill Validator Jam Areas

Bill Validator

17 Handle

Bill Validator

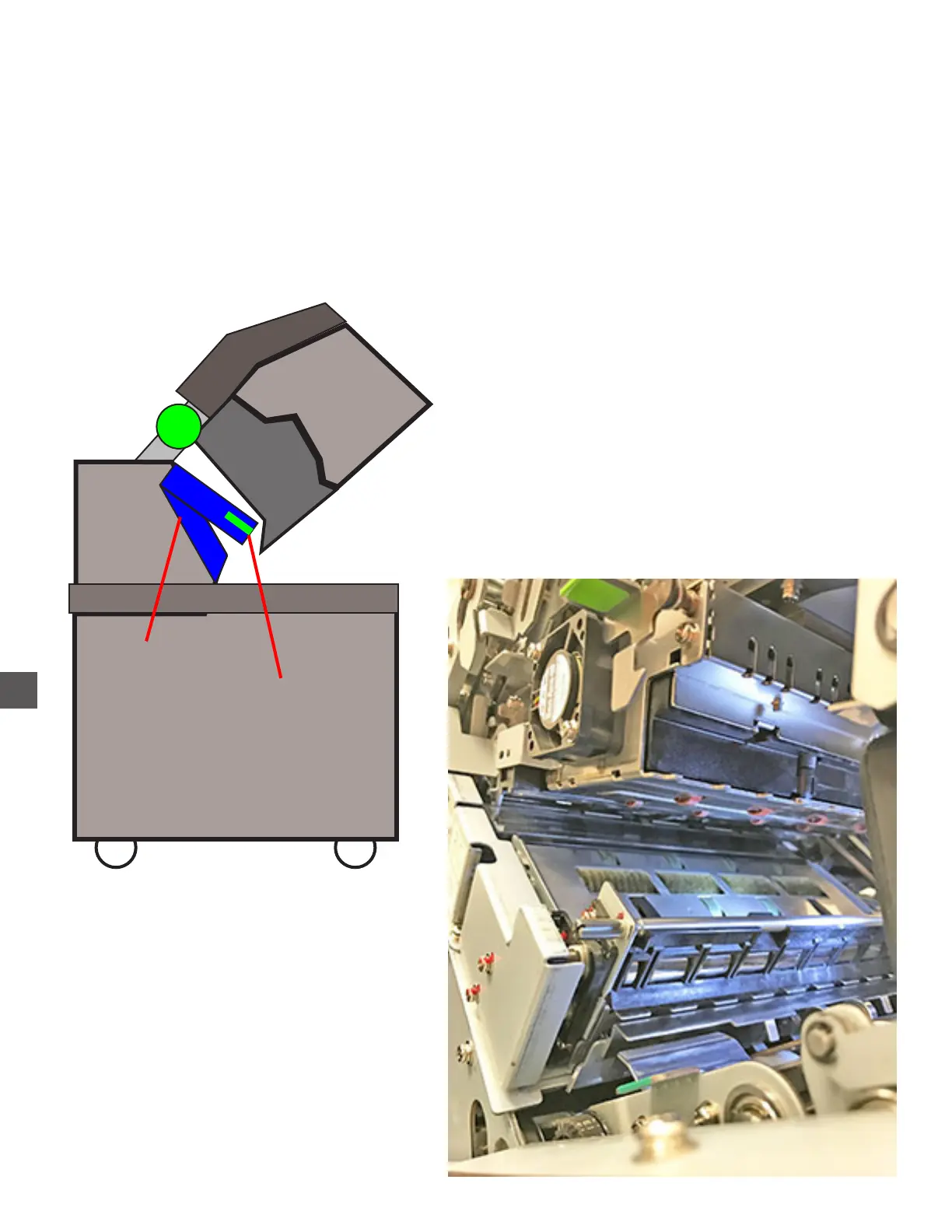

1) Lift the “17 Handle” to open the Bill Validator.

INSPECT ALL AREAS FOR JAMS/OBSTRUCTIONS
