Note Collection area
1) Lift Doors (B12b) AND B5.
2) Rotate knob B1 (CW) to bring the rear packer plate toward the rear of the unit.
3) Rotate knob B2 (CCW) the to place the front packer plate forward.
4) Rotate knob B10 (CCW) to lower presentation plate.
5) Rotate knob B11 (CCW) to lower packer plate fence.
6) Lift Note Insertion Area Door (B5)
INSPECT ALL AREAS FOR JAMS/OBSTRUCTIONS

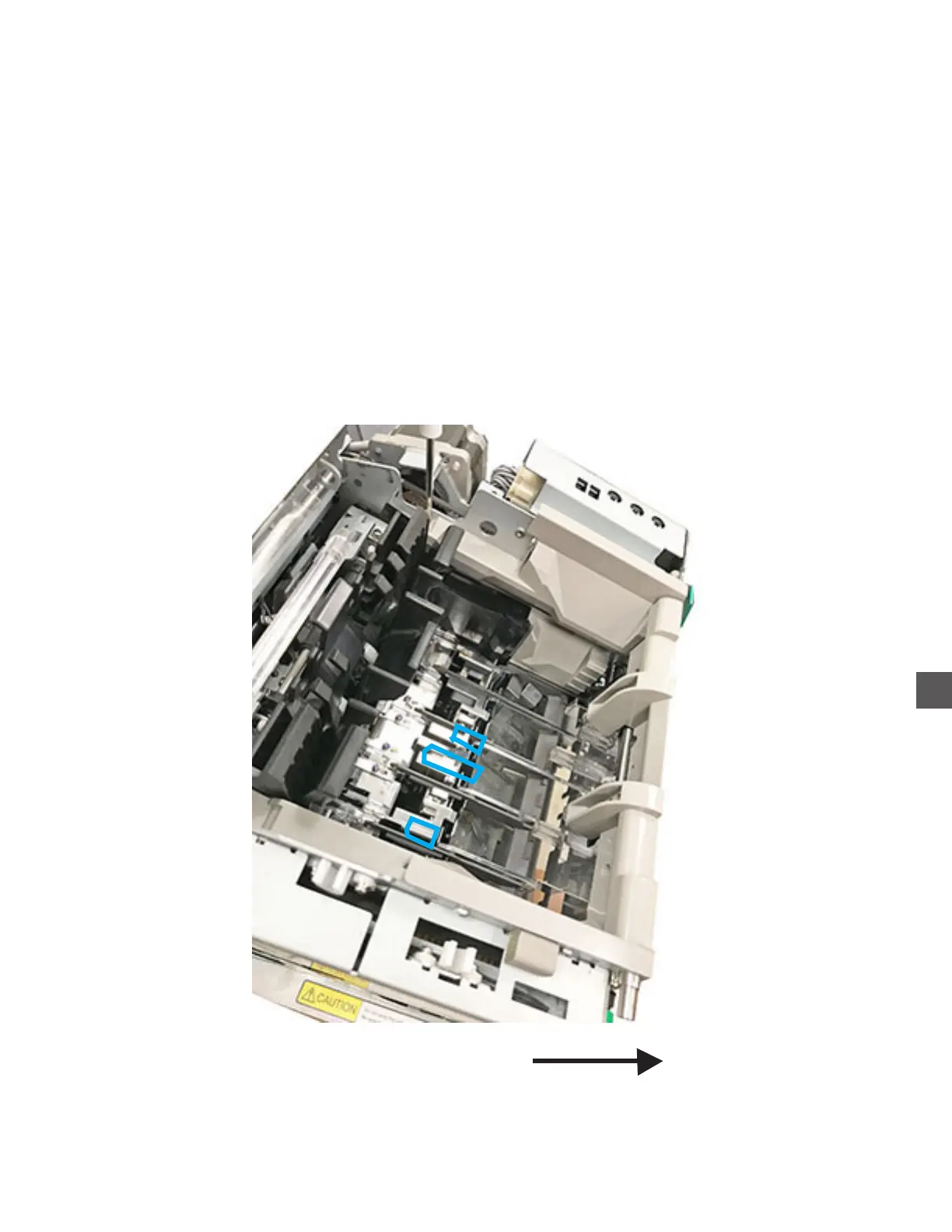

Note Collection - Jam Areas
Front of unit
To Next Page
